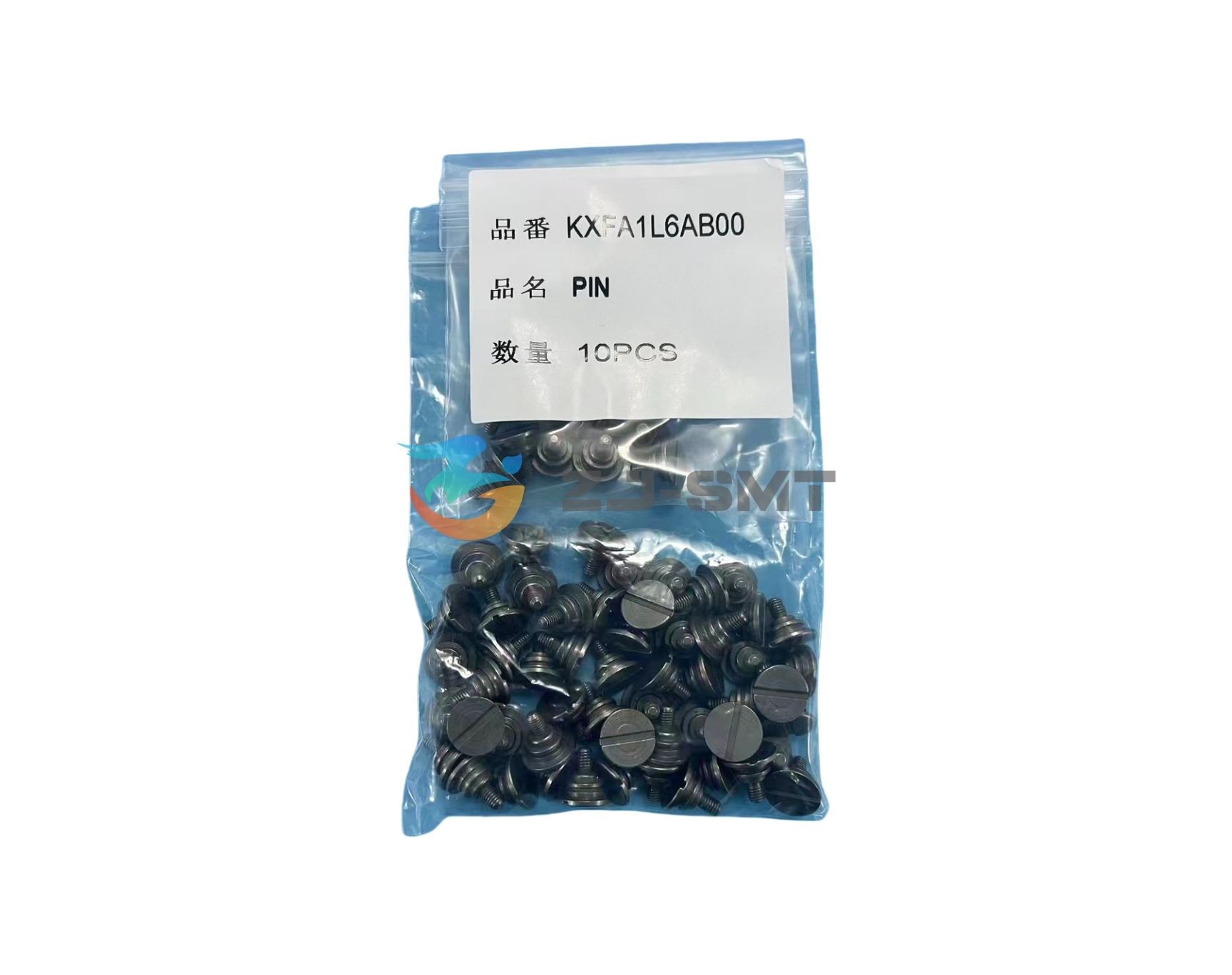

KXFA1L6AB00 is a Panasonic feeder pin used in the feeder assemblies of CM402, CM602 and NPM SMT placement machines. It is a small mechanical replacement part, fitted during feeder service when the original pin is worn, damaged or missing, so the feeder returns to the line with its original setup rather than a workaround. Because all three platforms share a great deal of feeder hardware, one pin number covers the feeder assemblies on each of them. We supply this pin to pick and place machine manufacturers, EMS plants and SMT repair houses worldwide, and it is a direct replacement for the item that comes out of the feeder.
Start with the number that is already on the machine. Panasonic marks feeder components individually, and the old pin is the quickest reference: read the number from the pin itself and check it against the feeder parts list or your maintenance record before you order. If the marking has worn away, photograph the pin beside the feeder, note the machine model — CM402, CM602 or NPM — and we will cross-check it for you. Two pins can sit in the same tray and still belong to different feeder assemblies, so choosing by photo alone is risky. If you are rebuilding several feeders at once, work through the parts list line by line so every item in the service matches the machine it goes back on.
| Part number | KXFA1L6AB00 |
| Product type | Replacement feeder pin |
| Component family | Panasonic feeder spare parts |
| Machine compatibility | Panasonic CM402, CM602, NPM |
| Machine category | SMT pick and place machine |
| Brand compatibility | Panasonic |
| Fitting position | Feeder assembly, as the original pin |
| Fitting method | Direct fit into the same seat as the removed pin, with no modification to the feeder |
| Part class | Mechanical wear component inside the feeder assembly |
| Order reference | Number marked on the original pin |
| Unit of supply | Each pin supplied individually, with multiples handled as one batch |
| Packing | Standard protective packing; your preferred packing method can be arranged on order |
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
The pin is supplied as an individual replacement part, so you replace only the worn item. Feeders are normally serviced on the bench: the pin comes out, the new one goes in, and the rest of the assembly stays as it is. Ordering a pin does not commit you to a complete feeder.
There is no fixed interval — it depends on running hours, changeovers and how the feeder is handled. Pins are normally checked during scheduled feeder service, and anything showing visible wear, damage or a loose fit is replaced at that point. Catching it at the bench is better than catching it mid-production.
No. Automated insertion machines and their tape feeders use their own dedicated part numbers, so a pin from a CM402, CM602 or NPM feeder should not be fitted to them. If you also maintain AI equipment, tell us the model and we will check the correct number for that machine.
Many maintenance teams inspect the small wear items in a feeder while it is open and refresh anything that looks tired, rather than opening the same feeder twice. If you work from the feeder's parts list, the other items can be checked against the same machine model in one pass.
Not always. Panasonic numbers feeder components per assembly, so a pin that suits one feeder may not suit another width or platform. This pin is listed for CM402, CM602 and NPM feeder assemblies. If you are working on another width or model, send the feeder's parts list and we will point you to the correct number.
Yes. Repair shops and in-house teams rebuilding CM402, CM602 and NPM feeders fit it as the replacement pin during a refresh, along with cleaning and adjustment of the feeder. It is a standard part of a feeder overhaul rather than a modification, so refurbished feeders go back to the line in their original configuration.
