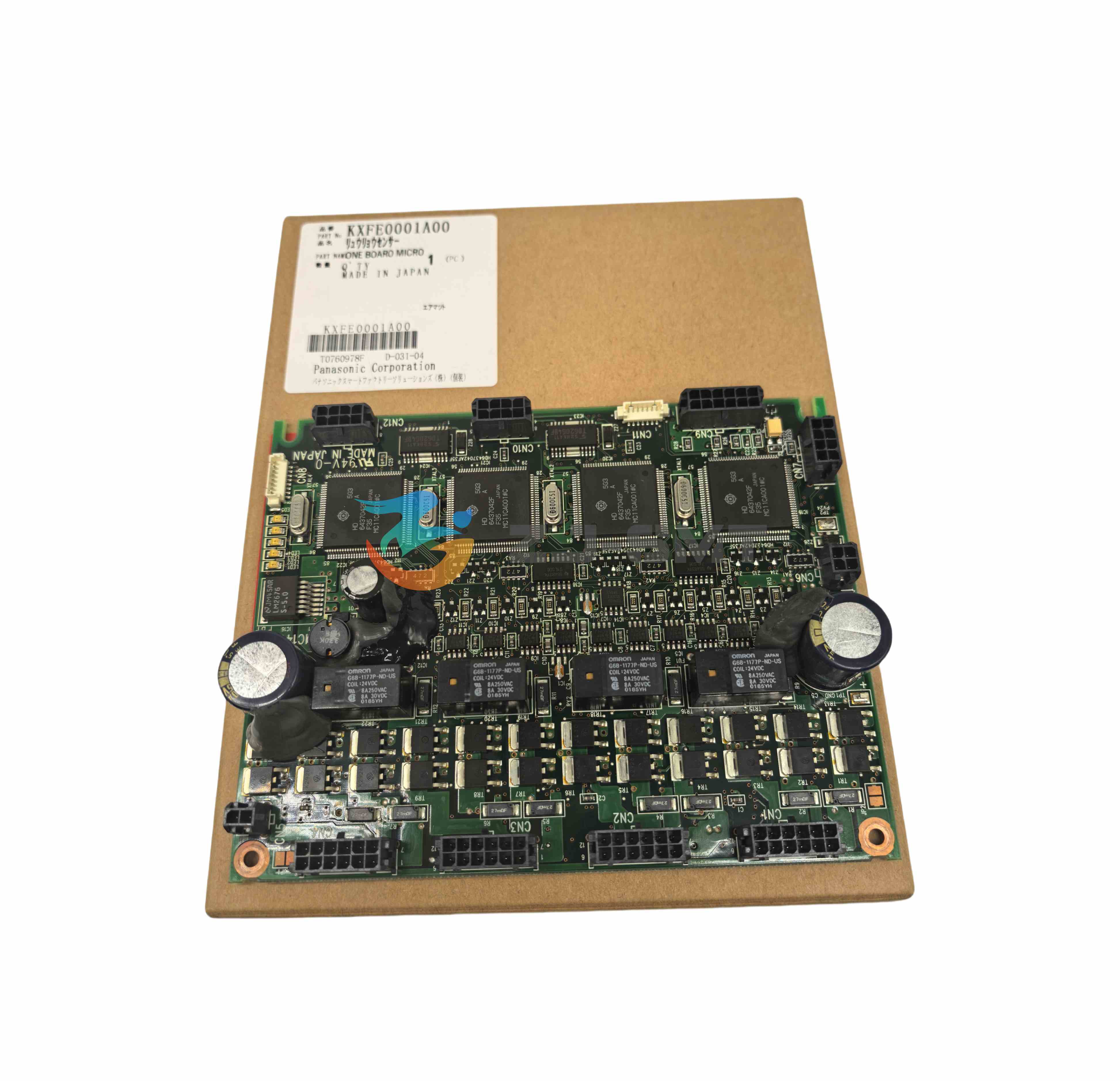

KXFE0001A00 Panasonic One Board Micro

Part No.: KXFE0001A00

Product Name: Panasonic One Board Micro

Description: Panasonic One Board Micro, Panasonic SMT Board, Panasonic CM402

Other SMT Spare Parts – please inquire sales@zj-smttech.com



Central Control for Feeder and Motion Synchronization
The KXFE0001A00 main board is a microcontroller unit used in Panasonic SMT platforms, acting as the central node for feeder control and motion command processing. Designed to coordinate signals between the system’s driver motor, sensor inputs, and feeder board communication pathways, this board is vital for ensuring synchronous operation across placement heads and tape feeders. Suitable for CM and NPM series machines, the KXFE0001A00 handles key automation logic in fast-paced production lines, delivering the responsiveness and control precision required in high-throughput electronics assembly environments.

Robust Micro-Level Architecture for Real-Time Operation
This one-board micro module integrates signal decoding, power distribution, and logic control in a compact PCB footprint. Its multi-layer layout and dedicated processor enable real-time response to feeder indexing, motor actuation, and error detection. The board includes optimized connector interfaces for direct plug-in to compatible Panasonic platforms, eliminating the need for signal adaptors. By linking control routines across the dc motor, sensors, and peripheral boards, this main board ensures stable system operation and reduces data latency, essential for minimizing misfeeds or mechanical conflict during placement cycles.

Field-Proven Role in Automated Equipment Stability
In modern SMT environments, the reliability of control boards directly impacts placement accuracy and machine uptime. The KXFE0001A00 contributes to consistent feeding motion, automatic part recognition, and coordinated actuator performance. When paired with OEM-standard feeder board and driver motor assemblies, it sustains the control backbone of Panasonic feeders under continuous-duty operation. Its compact architecture and heat-resistant design also support long-term use with minimal signal degradation, making it a practical choice for engineers seeking stable logic modules with proven field history.

Product Advantages

Direct Fit Integration into Panasonic Control Systems
This main board is mechanically and electrically compatible with original Panasonic machine layouts. It supports direct installation into designated slots with matching alignment holes and board interfaces, ensuring instant physical fit. All signal pathways align with Panasonic’s internal bus architecture, allowing the board to begin operating without firmware modification or interface adjustment. ZJ-SMT delivers this board to engineers seeking a high-fidelity substitute that avoids calibration overhead and integrates smoothly with existing driver motor and control modules.

Precision Signal Routing for High-Speed Command Execution
At the heart of the board is a streamlined signal architecture that handles feeder indexing, vacuum switching, and feedback processing in parallel. Designed for zero-delay relay across microseconds, this board prevents timing mismatches between mechanical execution and controller response. It enables real-time decision-making by minimizing packet congestion between the feeder board and host system. This advantage is especially critical in high-speed machines where milliseconds can impact placement yield and production tempo.

Optimized Durability for Continuous SMT Line Deployment
Constructed with multi-layered industrial-grade PCB and reinforced edge plating, the KXFE0001A00 withstands high-temperature environments and frequent signal cycling. Its connectors are gold-plated to resist oxidation, and the surface is treated with anti-static coating to protect signal integrity. This physical robustness ensures the board can be deployed in demanding SMT environments for extended periods without performance loss. As a solution bridging the dc motor control chain, its stability contributes directly to overall line uptime and reduced maintenance intervention.
