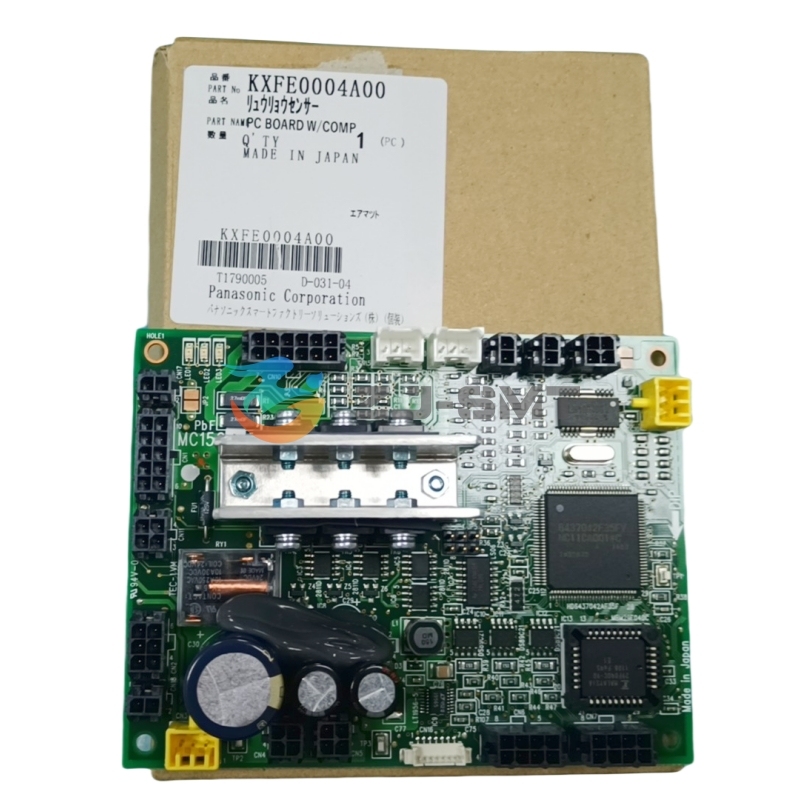

KXFE0004A00 is the head control board used on the Panasonic CM402 and CM602 modular placement platforms. It sits in the head section of the machine and carries control signals between the main control system and the placement head, so when the board fails the head stops working long before anything else on the machine does.
This is a board-level spare rather than a consumable. Maintenance teams running CM402 or CM602 lines keep one on the shelf so a head fault does not take a module out of production while a replacement is sourced, and repair companies and parts distributors stock it for the same reason. We supply this board together with the nozzles, valves, feeder parts and motors that wear alongside it, and we work with pick and place machine manufacturers and EMS plants worldwide.
This head control board is listed for the Panasonic CM402 and CM602 placement platforms. Match the number printed on the board you are removing rather than the machine name alone, because several boards inside the same machine carry different numbers for different functions.
Two checks are worth making before you order. Physically, the mounting position and connector layout at the head have to match your existing board. Electrically, the cable routing back to the machine's control system should be the same as the board coming out. If the label on your board is worn or unreadable, send us a clear photo — our team handles this kind of match regularly for smt pick and place machine manufacturers and repair companies.
| Part reference | KXFE0004A00 |
| Component type | Head control board |
| Machine compatibility | Panasonic CM402, CM602 |
| Machine platform | Modular SMT placement system |
| Board function | Head-side control and signal interface |
| Position on machine | Head section of the placement platform |
| Replacement type | Board-level replacement, matched by part number |
| Supplied as | Board assembly |
| Order reference | Number printed on the original board |
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
It is the head control board for the Panasonic CM402 and CM602 modular placement platforms. Both machine models use this board for the head control function, so it is the right reference when a head board on either platform needs replacing. If your machine is a different Panasonic series, send us the model and the number printed on the board and we will tell you what fits.
Read the number printed on the board itself and compare it with the number of the board you are ordering. The printed number is more reliable than the machine name, because several different boards sit inside a CM402 or CM602. If the label is worn, send us a clear photo of the board and we will read it with you.
Work with the machine powered down and follow your own service procedure. Compare the replacement with the board coming out — mounting holes, connector positions and plug orientation should line up. Keep the board in its anti-static bag until the moment of fitting and handle it by the edges, away from the connector area.
Yes. We supply the nozzles, valves, feeder parts and motors that sit around the head on CM402 and CM602 machines, so head-section spares can be ordered together. Tell us the items you need and the machine model, and we will confirm the matching part numbers for you.
The board is supplied on its own as a board assembly. If you also need mounting screws, brackets or wiring parts, tell us which ones you want and we will confirm what is available for your machine.
A CM602 carries several separate control boards, including the SSR control board and the Y driver control unit, and each one has its own part number. The head board is the one serving the head section. Match the printed number rather than the board's position on the machine, and send a photo if two boards look alike.
