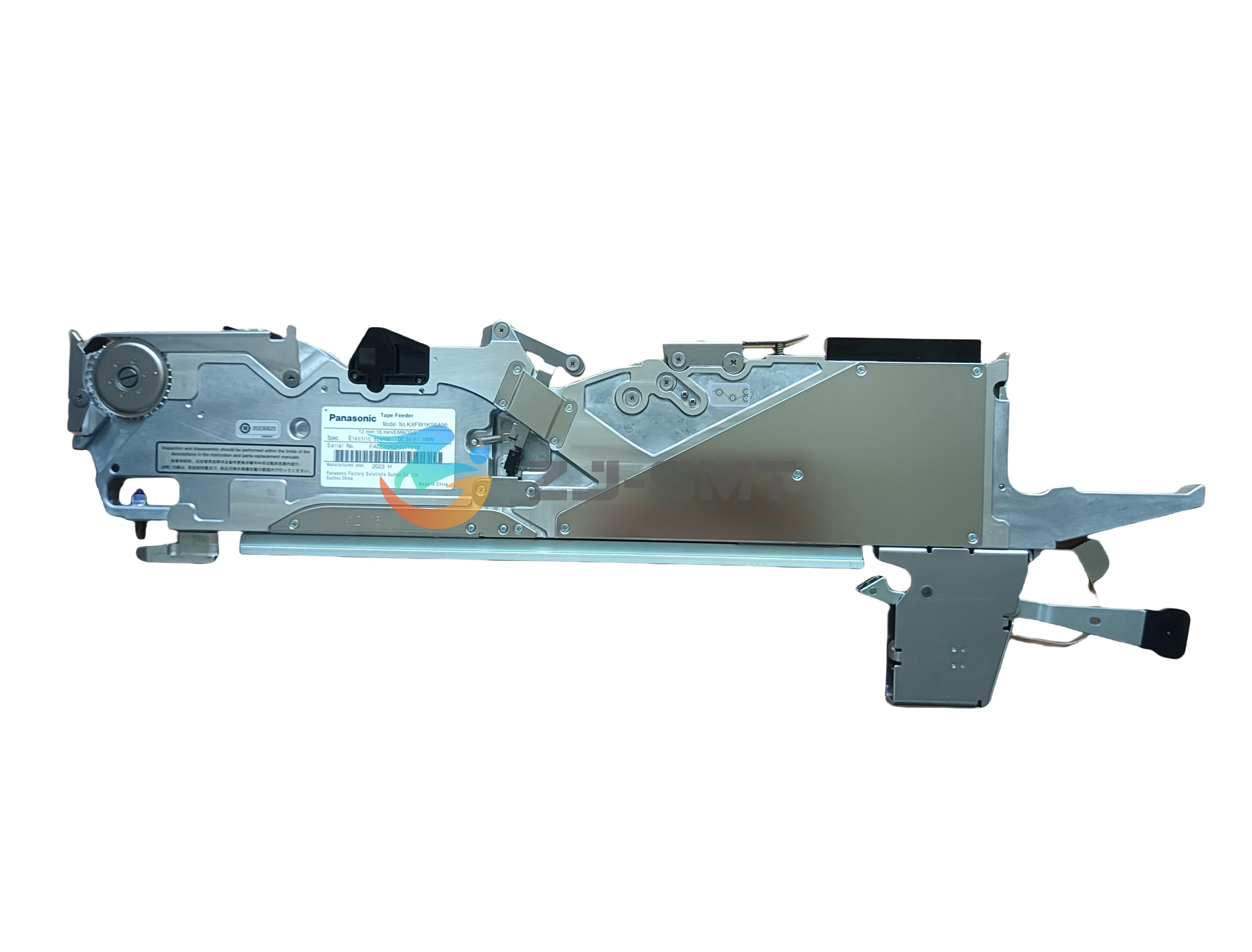

KXFW1KS6A00 Panasonic Tape Feeder 12mm 16mm

About This Panasonic Tape Feeder

ZJ-SMT supplies this tape feeder to SMT pick and place machine manufacturers, EMS plants and PCB assembly factories that run Panasonic lines around the clock. Most orders start with a single unit to replace a worn feeder, plus a second kept on the shelf so a changeover never waits on a repair. Larger quantities go out for new line builds and feeder-fleet refreshes, and feeder parts can be added to the same order so a spares kit arrives complete.

Key Specifications

Where It Fits in Production

The builds this feeder is designed for are the ones that change from run to run. Automotive control modules, communication boards and consumer device power units all mix SMT components of several sizes on the same panel, so a lane that covers more than one component family saves changeover time. High-mix plants keep it on the line for that reason: batch sizes and part types vary, and mid-sized parts can be fed without reconfiguring the whole line. Accuracy holds across assemblies with variable mechanical and electrical footprints, so line uptime does not depend on the mix staying still.

Fitting It to Your Lane

1. Confirm the lane: this feeder fits a mid-width slot on a Panasonic placement platform.
2. Check that the reel diameter you normally run clears the trolley before the feeder goes in.
3. Seat the feeder in the lane the way you would the body it replaces.
4. Run the machine's own check before the lane is released back into production.
5. Load the reel, route the tape through the guide and re-check pickup alignment after the change.
6. Label each feeder with the tape width it carries, so a shelf spare goes into a matching lane without a second check.

Supply, Spares and Support

• Send the machine model, the feeder part number you are replacing, the quantity and a clear photo of the original part, and our team will confirm the match before the order is placed.
• ZJ-SMT has worked in the SMT and AI equipment industry for more than 20 years and holds thousands of product types in stock, including feeder parts, nozzles, valves, motors and boards.
• Supply covers Panasonic, Yamaha, Fuji, Juki and Samsung equipment and parts alongside cost-effective alternatives, serving SMT pick and place machine manufacturers, EMS plants and repair workshops through more than 20 overseas agents and a customer base of over 100 companies across Asia, Europe and North and South America.
• Stock items normally ship within 3–5 business days; parts that have to be booked take about 4–6 weeks, and we confirm which case applies before the order is placed.
• Packing can follow your preferred method, and part-number cross-references or a product catalogue are available on request.
• Within the warranty period we provide technical support or replacement parts where a fault is not caused by human damage or operating errors, and our engineers support installation, maintenance and production optimization.

Scale & Supply Capability

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
