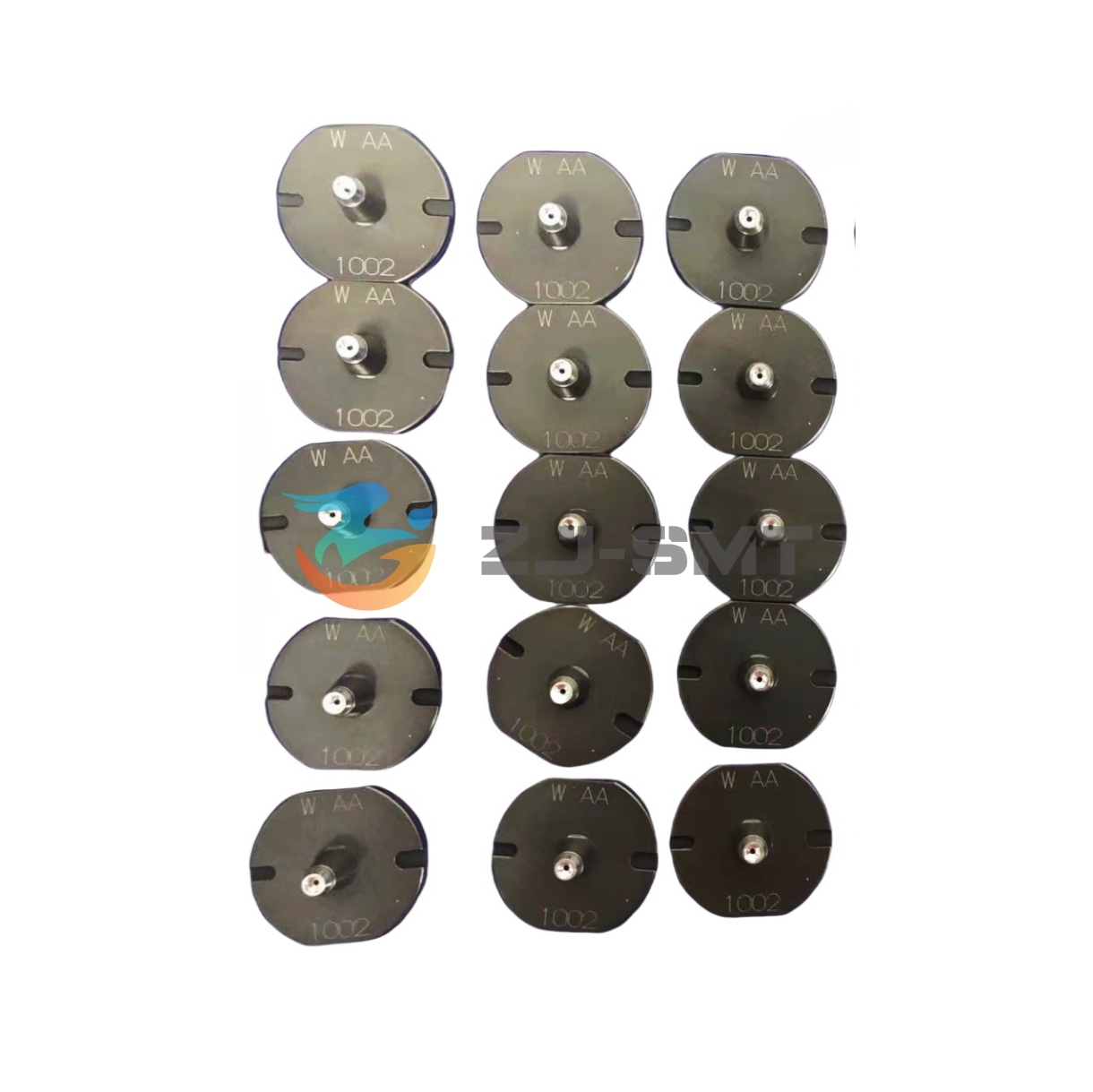

The Panasonic 1002 Nozzle for CM/DT/NPM SMT is a high-quality nozzle designed for use in pick-and-place machines in the surface mount technology (SMT) process. Engineered for precision and durability, this nozzle ensures accurate handling of components during assembly, contributing to enhanced efficiency and productivity in PCB assembly lines. As a trusted SMT nozzles supplier, we provide reliable, long-lasting solutions for automated assembly systems.
| Specification | Detail |
|---|---|
| Part name | Panasonic 1002 nozzle for CM/DT/NPM SMT |
| Part number | KXFX037TA00 |
| Also listed as | KXFX03DVA00 / KXFW1ATAA00 |
| Machine series | Panasonic CM, DT and NPM |
| Part type | Replacement nozzle |
| Function | Vacuum pick-up and placement of SMT components |
| Series | 1002, separate from the 1002N series |
| Construction | Durable materials for repeated placement cycles |
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
No. It is a mechanical replacement rather than a conversion, so fitting comes down to seating the tip correctly in the holder and checking the pick-up. Run a few test placements at the same head position and confirm the tip is fully seated before you release the machine back to production.
They are separate series with their own part numbers and their own machine fit, so the two are not interchangeable. A 1002 and a 1002N tip can look very similar once they are off the head, which is why the number printed on the part is a safer guide than appearance.
Yes. It is built for the cycle rates smt pick and place machine manufacturers design their platforms around, where pick-up and release repeat thousands of times a shift. The tip also copes with a range of component sizes, so it stays useful on lines that switch between products during the day.
It is designed to work across a range of component sizes instead of being tied to a single package, which suits mixed-product lines. If pick-up becomes inconsistent on the smallest parts, check the tip face for wear and clean the bore before you change the placement program.
Then the tip is probably not the cause. Work back through the vacuum path behind it — the holder, its seal and the tubing that feeds the head — and check the feeder and pick height at that position. Refitting the old tip for a short test run is a quick way to confirm whether the fault follows the nozzle or the position.
No. It is a Panasonic-format tip, and Panasonic heads use their own nozzle interface. Other pick and place machine manufacturers fit tips with different geometry, and one that looks similar will not seat or hold vacuum correctly. If you run mixed-brand lines, send the machine models and we will tell you which part suits each one.
