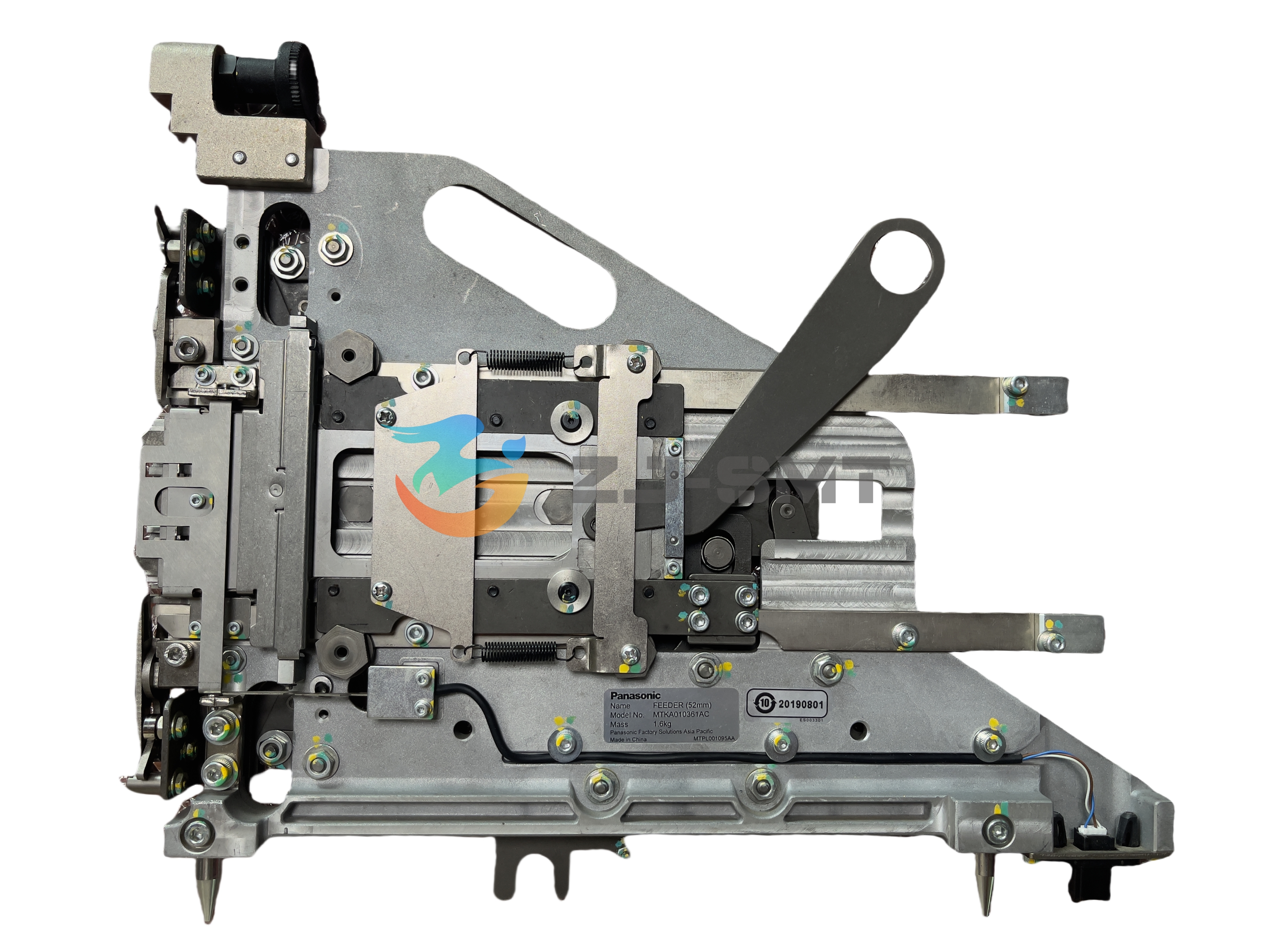

This Panasonic AI tape feeder is specified for the AV132 automated insertion machine. Taped parts reach the insertion head at the pitch the machine expects, so a worn or failed unit can be swapped out in the same bank position without disturbing the rest of the line setup. Service teams at SMT pick and place machine manufacturers and maintenance departments in PCB assembly plants keep one on the shelf so a single feeder fault does not stop a running line. ZJ-SMT supplies it as a spare part, matched to the AV132 platform.
Key Specifications
Item
Detail
Part number
MTKA010361AC
Product name
Panasonic tape feeder
Feeder type
AI tape feeder
Tape width
52 mm
Machine platform
Panasonic AV132
Machine class
Automated insertion (AI)
Mounting position
AV132 feeder bank
Product group
Feeders – spare part
Where the Wide Tape Path Earns Its Place
This feeder earns its place on jobs that run wide carrier tape: connectors, larger packages and other SMT components that do not sit comfortably in a narrow feeder. Tape is threaded through the tape path and indexed forward, so the carrier stays under control from the reel to the pickup point. Before a run, hand-index a few steps and confirm the tape advances cleanly; wipe the tape path between jobs and never force a tape that has jammed. High-mix lines that change over often are where it works hardest.
Fit Checks Before You Order
Confirm the host machine is a Panasonic AV132 — this unit is matched to that platform and is not a general-purpose feeder.
Match the tape width against the unit you are replacing, because a job running narrower carrier tape needs the matching feeder instead of this model.
Compare the part number stamped on the feeder in service with the part number for this model; that is the quickest confirmation of a correct match.
When your floor runs more than one Panasonic platform, give the machine model with each item — feeders are matched per machine rather than shared across lines.
AV132 Hardware Held Alongside the Feeder
Part number
Item
N510018479AA
Round plain washer 4, 10H, A2J (trivalent)
N510018480AA
Round plain washer 5, 10H, A2J (trivalent)
N510018481AA
Round plain washer 6, 10H, A2J (trivalent)
N510017381AA
Hex socket head cap bolt M4 x 8, 10.9, A2J (trivalent)
N510017346AA
Hex socket head cap bolt M4 x 12, 10.9, A2J (trivalent)
N510017386AA
Hex socket head cap bolt M5 x 10, 10.9, A2J (trivalent)
N210170027AA
RL132 bracket
N210185165AA
RL132 plate
Part No.: MTKA010361AC
Product Name: Panasonic Tape Feeder 52mm
Description: Panasonic AI Tape Feeder for Panasonic AV132
Panasonic AV132 RL132 Hex. Socket Head Cap Bolt M4X8-10.9 A2J (Trivalent)
N510017346AA
Panasonic AV132 RL132 Hex. Socket Head Cap Bolt M4X12-10.9 A2J (Trivalent)
N510017386AA
Panasonic AV132 RL132 Hex. Socket Head Cap Bolt M5X10-10.9 A2J (Trivalent)
N210170027AA
Panasonic Bracket for RL132
N210185165AA
Panasonic Plate for RL132
