Specifications
| Item | Detail |
|---|---|

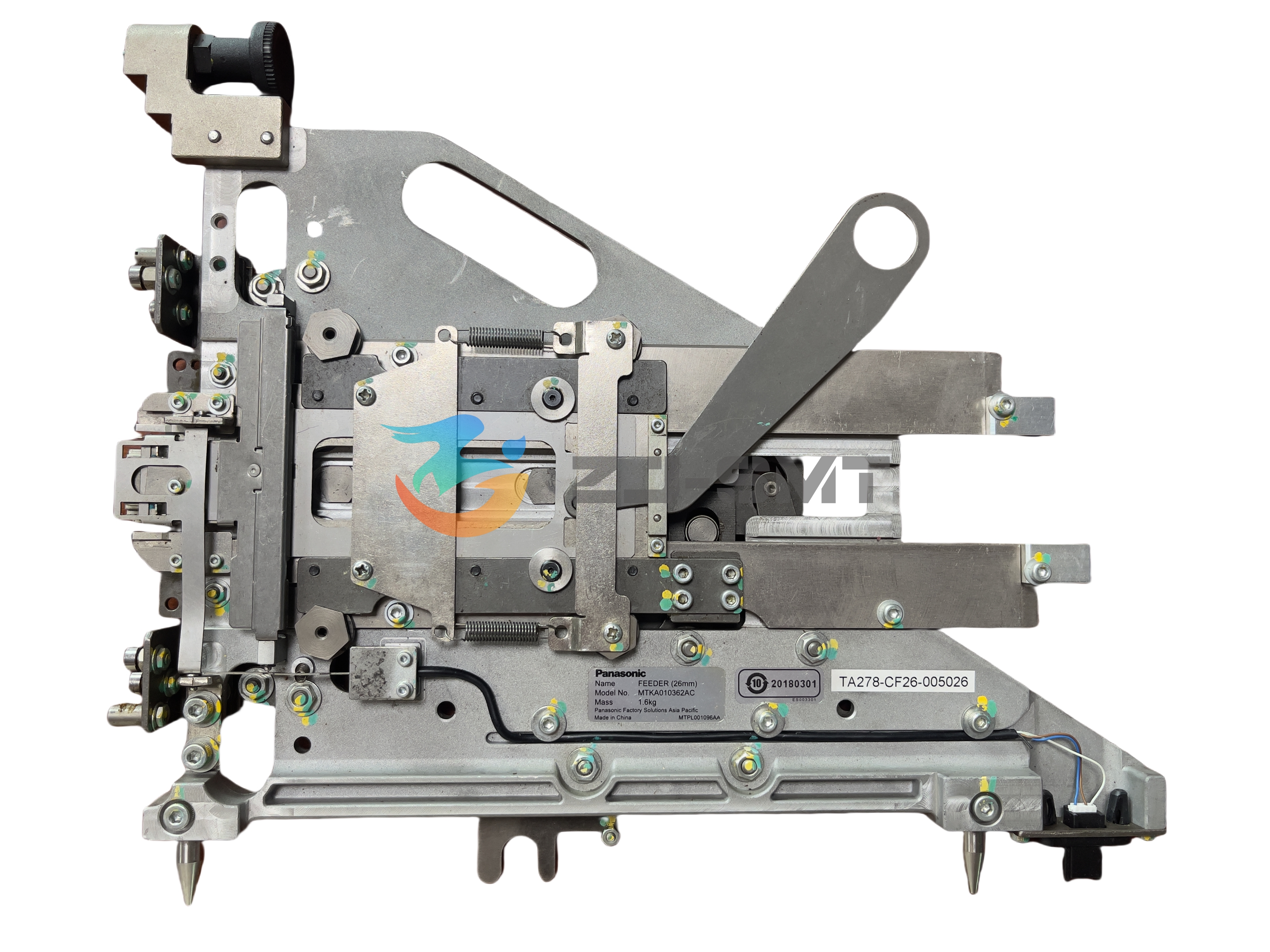

| Product name | Panasonic AV132 tape feeder |
| Feeder type | Complete tape feeder unit |
| Tape width | 26 mm |
| Machine platform | Panasonic AV132 AI insertion machine |
| Part references | MTKA010362AC, MTKA010362AA and MTKA010361AA |
| Feeding duty | Continuous high-speed component feed |
| Feed source | Taped component reels |
| Build standard | Panasonic feeder specification |
| Equipment class | Automated insertion equipment for PCB assembly |
| Supply form | Single replacement units and bulk quantities |
ZJ-SMT has supplied SMT and PCB assembly spare parts since 2002, covering Panasonic feeders as well as nozzles, valves and motors for Panasonic, Yamaha, Fuji, Juki and Samsung equipment. Bulk orders and custom sourcing are part of everyday work: tell us the machines you run and we will put together the units your maintenance schedule needs, from a single replacement to stock covering several lines.
Our engineers support installation, maintenance and production optimization, and parts are held in our Dongguan warehouse so a routine replacement does not turn into a waiting game. We serve customers across Asia, Europe and the Americas through more than 20 overseas agents. If the feeder or a related part is not shown in our catalog, send the model number or a clear photo and we will check it for you.
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
This unit is built for the AV132 and the position it occupies on that machine, so it is not interchangeable with feeders made for other Panasonic platforms. Each feeder reference is tied to one machine and one tape width, which is why SMT pick and place machine manufacturers and PCB assembly plants confirm the platform before ordering. Send us the machine model and tape width you are running and we will confirm which feeder matches it.
Move the feeder to another position on the same machine: if the fault travels with it, the unit is the item to replace. If the fault stays in the same position, check the reel, the tape splice and the insertion head before ordering anything new. A swap test like this is usually faster than pulling the feeder apart on the bench.
Keep it dry, dust-free and supported on a shelf or rack rather than in a loose pile, away from heavy vibration and impact. A feeder that has come off a machine should be checked over before it returns to spares stock, so the next person to fit it starts from a known-good unit. Labelling the shelf position it serves also makes the swap faster when a line is down.
Yes — these units are supplied as original Panasonic feeders for the AV132, which is why mounting points and feed timing stay within the specification the machine was built around. Production lines re-stocking an AV132 usually order this version for exactly that reason.
It mounts in the same position and follows the same tape path as the unit it replaces, so the line does not need re-setting. Load the reel the same way as before and run the first inserts at reduced speed to confirm feed timing before the machine returns to full rate. That check takes a few minutes and catches fitting mistakes while the machine is still running slowly.
Yes — OEM and ODM production is available for feeder parts and related spare components, so a non-standard version can be made to your requirements. Send a drawing or the specification you are working to and our team will confirm what can be produced. Most replacement needs are covered by the standard unit; the custom route is for special requirements.
