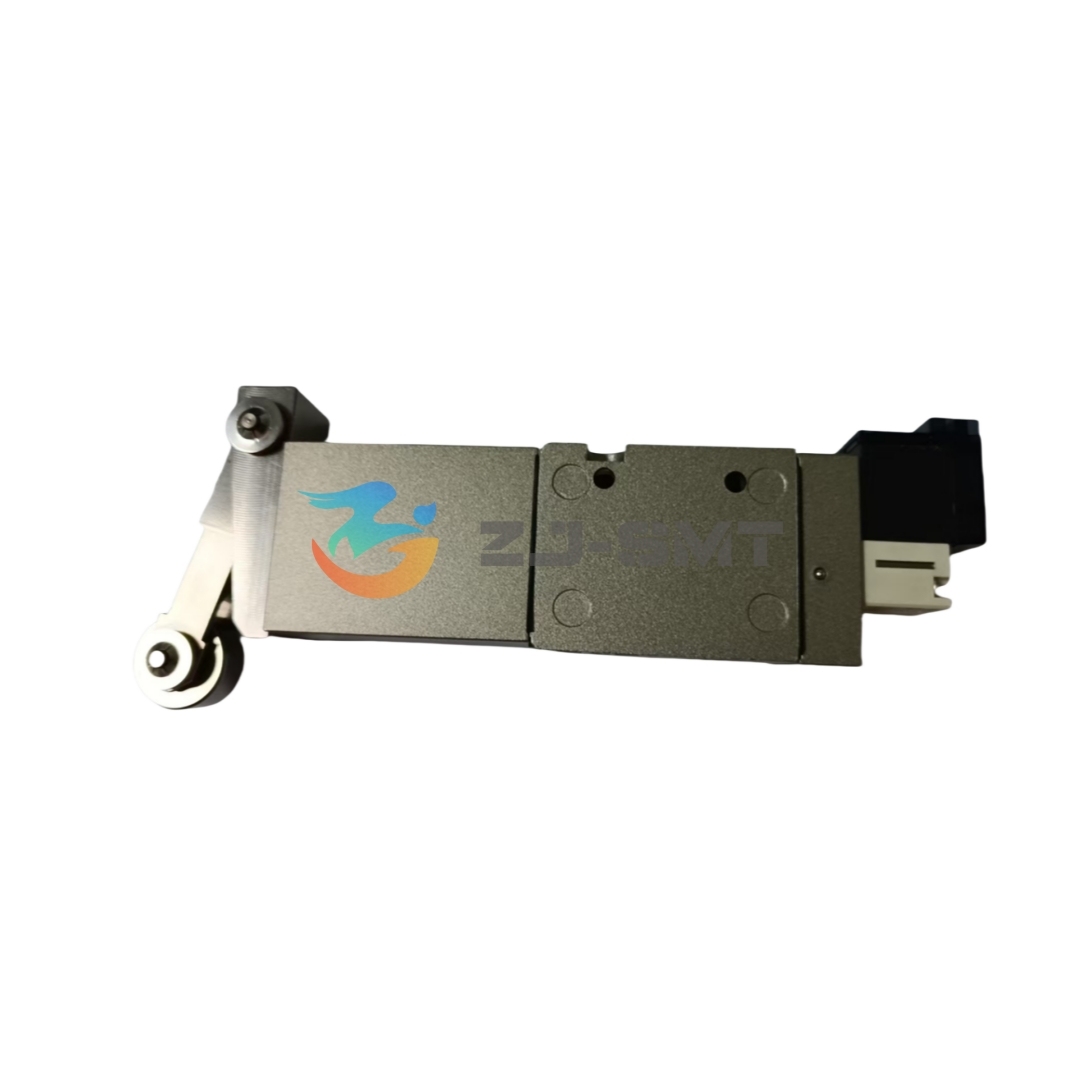

N413AXT7-186 / N413AXT752A5 / N413AXT7-107 / N413AXT752A2 Panasonic Valve

No.N413AXT7-186 / N413AXT752A5 / N413AXT7-107 / N413AXT752A2

Part No.: N413AXT7-186 / N413AXT752A5 / N413AXT7-107 / N413AXT752A2

Product Name: Panasonic Valve

Description: Panasonic Valve for Panasonic RH3/AVK/RHS2B/RHSG

  • N413AXT7-186 / N413AXT752A5 / N413AXT7-107 / N413AXT752A2 Panasonic Valve

Description

Product Overview

A Panasonic valve supplied under four part numbers, so a single order can cover the references a maintenance store is most likely to hold. It is a direct replacement part: it goes into the same position the old valve came out of, and the number on that part tells you which reference to order. Typical buyers are maintenance engineers, spares coordinators and service companies who need a machine back in production, plus workshops building shelf stock against future failures. Panasonic keeps its own numbering across these machines, and as a solenoid valve supplier working with insertion equipment we see the same pattern on every order — the number decides whether a replacement works. That is why these references are supplied with clean identification and no guesswork on the shop floor.

Specifications

Attribute Detail
Brand Panasonic
Component type Replacement solenoid valve
Product name Panasonic valve
Part number N413AXT7-186
Part number N413AXT752A5
Part number N413AXT7-107
Part number N413AXT752A2
Shared prefix N413AXT7
References in this listing Four
Machine coverage Panasonic RH3, AVK, RHS2B and RHSG
Fitting position Matched to the individual valve position on the head
Marking Part number on the valve itself or on the label around it
Category Valves and SMT/AI spare parts

Machine Compatibility

  • AVK machines — this valve is listed for the AVK axial insertion platform, so axial lines are covered alongside the RH-series equipment.
  • RH3, RHS2B and RHSG — all three insertion platforms are covered as well, which helps workshops running more than one generation of Panasonic equipment.
  • Position, not just machine — if a head carries more than one valve position, match the number to the point you are working on rather than to the machine name.
  • Records worth keeping — note the number against the machine in your maintenance log so the next replacement does not depend on memory.
  • Match first, buy second — buyers comparing solenoid valve manufacturers ask one question before anything else: will the number match the part coming out of the machine? That question is what decides fit here.

Reading the Part Number

All four references begin with N413AXT7. That prefix is the fastest way to confirm you are looking at the right family before you check the suffix, which is what separates one reference from another. The number is normally marked on the valve itself or on the label around it, and it is worth reading in good light — a worn label is an easy way to misread a character. Write the full number down, including the dash and the letters after it, and keep it with the machine record. If you are rebuilding a head, quote the number on the part being replaced; where a manual and the fitted part disagree, send both and we will cross-check them. When you order, quote the full number: it is the one detail no supplier can work without.

Maintenance Applications

  • Planned maintenance — swap the valve during a scheduled stop so a tired part does not choose its own moment to fail.
  • Unplanned stops — when a head stops behaving as it should, fitting a known-good valve gets the machine producing again while the old part is checked off the line.
  • Shelf stock — keep the confirmed reference beside the machine's other valve and head spares so a repair does not turn into a search.
  • Machine rebuilds — refurbishers and second-hand dealers bring older Panasonic insertion machines back into service and need the original numbers rather than a generic description.
  • Multi-machine floors — a store that buys from several solenoid valve manufacturers can still keep one approved list; the confirmed numbers simply join it.

Scale & Supply Capability

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.

FAQ

Q1. Which of the four part numbers should I order?

Start with the number on the valve you are removing, then check it against the machine's parts list. If it matches one of the four references in this solenoid valve range, that is your replacement. If the old number is different, or the label is unreadable, send a clear photo with the machine model and we will confirm before you order.

Q2. Will this valve fit NPM or CM-series machines?

No — those platforms take their own solenoid valve references, and the numbers are different from the ones listed for these insertion machines. On a floor that runs both, list each valve against its machine model so a part is never ordered under the wrong line.

Q3. How often does a valve like this need replacing?

There is no fixed interval we would quote; replacement is normally driven by your own maintenance schedule and by what the machine shows on the floor. The most useful guide is your own record of past replacements on that head, since a log of numbers and dates tells you more than a general rule. Where the schedule allows, replace at a planned stop.

Q4. How should a spare valve be stored?

Keep it in its sealed packaging until the moment it is fitted, somewhere dry and away from dust, oils and direct sunlight. Label the bag or box with the part number and the machine it belongs to, and work through stock oldest first so nothing sits on the shelf for years unnoticed. Leave any protective caps in place until the valve is fitted.

Q5. What should I check when the valve arrives?

Match the number on the label to your order line before the valve goes anywhere near the machine, then check the ports and sealing faces for marks from transit. If anything looks wrong, photograph it as it arrived and contact us before fitting — a part that has not been installed is much easier to sort out than one that has.

Q6. Does the valve reference change with the product running on the machine?

No. The valve is matched to the machine and the head position, not to the component being run, so switching between product builds does not change the number you need. If a machine has been converted or rebuilt, check the number on the fitted part before reordering, because the current valve may not be the one the original manual lists.


Part No.: N413AXT7-186 / N413AXT752A5 / N413AXT7-107 / N413AXT752A2

Product Name: Panasonic Valve

Description: Panasonic Valve for Panasonic RH3/AVK/RHS2B/RHSG
