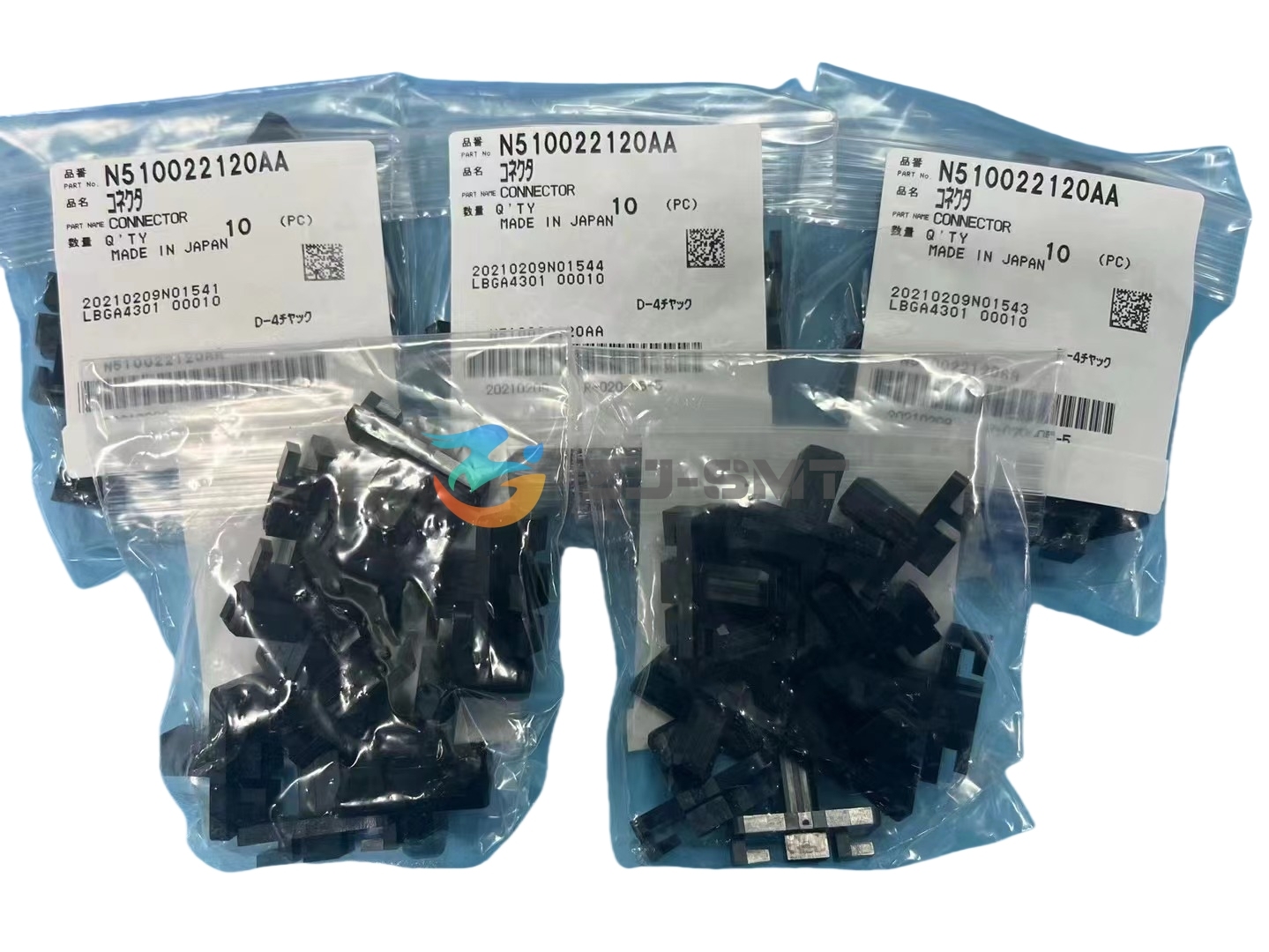

The N510022120AA is the power interface connector on the 8 mm Panasonic NPM feeder. It sits at the docking point and carries power between the feeder and the machine, so it is worked every time a feeder is loaded or removed. The connector is supplied for NPM feeders that are already in service, as a replacement for the interface component that has reached the end of its life.
The connector belongs on any Panasonic NPM feeder in daily use on an SMT placement line. High-mix factories that change over several times a day, refurbishment benches working through used feeders, and the maintenance cribs of larger plants are where it is fitted most often, and EMS and PCB assembly factories keep one on the shelf so a tired connector does not pull a feeder out of the production plan. Equipment dealers and SMT pick and place machine manufacturers hold them for the feeders they service and resell.
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
The part number is the deciding check, because it should match the marking on the connector being replaced. The feeder model and its width come next, since the interface belongs to the feeder it was built for. If a marking has worn away, send a clear photo of the connector in position and the label on the feeder body, and we will identify the correct item for you.
Start with the interface when a feeder fails to power up, drops out mid-run, or only works when the connector is pressed into its seat. Bent or discoloured contacts, a cracked housing, or a connector that moves when the feeder is handled all point to the interface part. If a new connector behaves the same way, the fault sits further back in the feeder wiring or on the board.
Yes. With the feeder off the line and powered down, and with the usual ESD precautions in place, the change is a bench job rather than a service visit. Run the feeder through a full load before it goes back into production so you know the contact is seated properly.
No. The connector is a mechanical and electrical interface, so nothing needs to be programmed or taught in once it is fitted; power the feeder and load it as you normally would. If the machine still reports a fault, send us the message shown on the display and we will help you trace it.
Keep them in their anti-static packaging in a dry, dust-free cabinet, away from moisture and metal swarf. Connectors that rattle loose in a toolbox are the ones that reach the feeder with contamination or bent contacts. Handle them by the housing rather than the contact area, and check the contacts again just before fitting.
Yes. Whatever else the feeder needs can go into the same request, so a unit going back into service does not need a second order. SMT pick and place machine manufacturers rebuilding a batch of feeders usually order the connector together with other components, and the same service is open to any factory maintaining its own line. Send the feeder model and the part numbers you are working with, and we will check them against the equipment you run.
