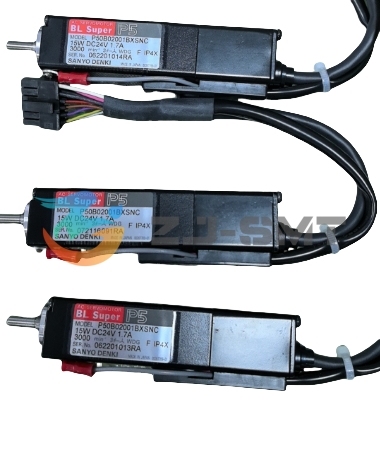

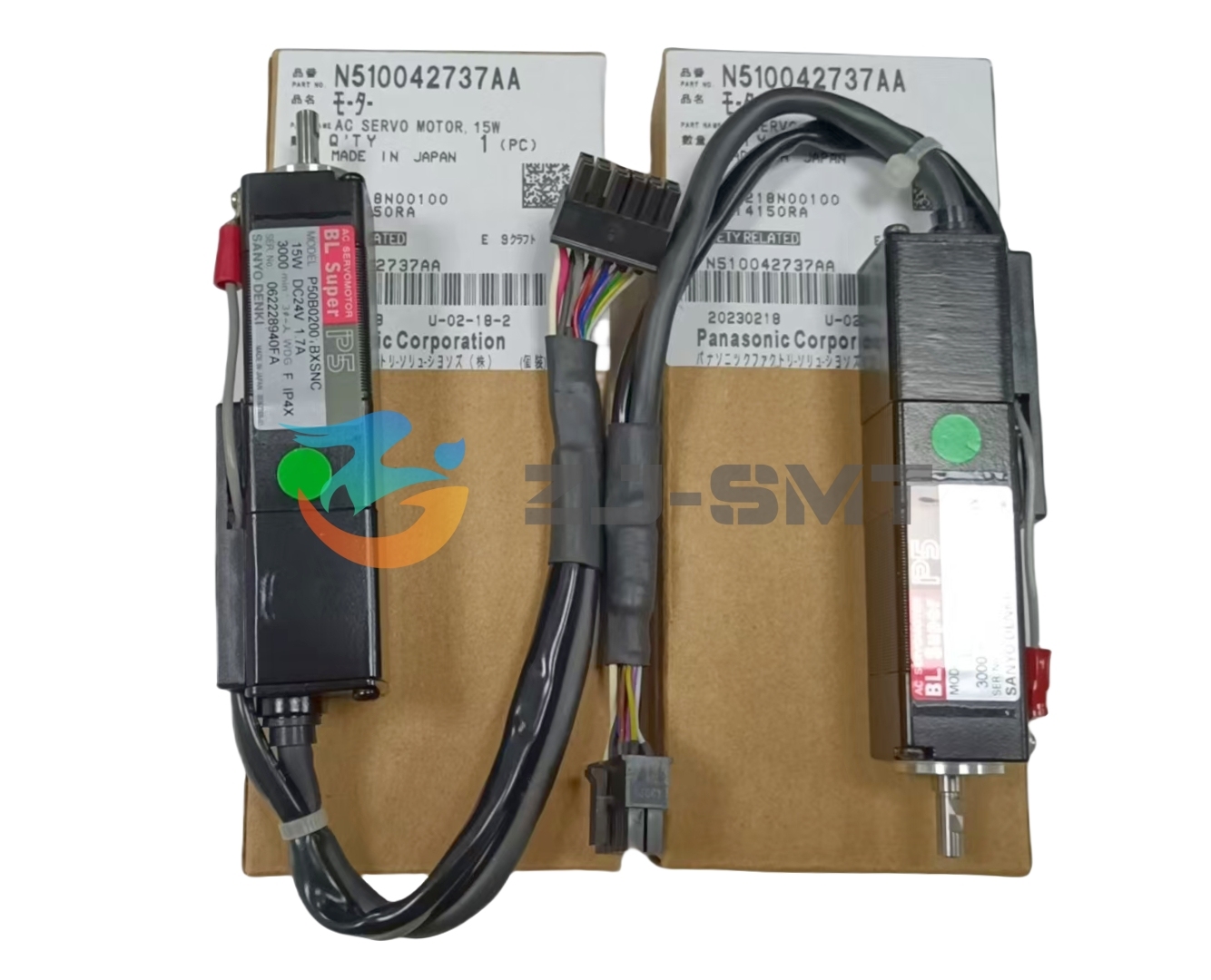

N510042737AA MTNM000235AA Panasonic 15w AC Servo Motor SMT

Key Features

• Correct 15W rating – the motor is sized for the drive duty the CM402 and CM602 platform expects, so it goes on without looking for a higher-rated substitute.
• Straight-swap platform fit – the mounting and connector layout matches the head position on these machines, so pick and place machine manufacturers and their service partners can replace the drive without adapting the machine.
• One motor, two Panasonic numbers – a fleet built in different years can be covered by a single spare, because both numbers identify the same unit.
• Replace the drive, not the assembly – an axis fault is cleared by swapping the motor itself, leaving the head, belt train and alignment untouched.
• Easy to check before fitting – shaft rotation, connector seating and mounting holes can all be verified on the bench, so the downtime window is used for installation.

Specifications

Applications

• Multi-shift placement lines – when a head axis starts to drift or alarm during a long production run, the drive is replaced at the next planned changeover and output resumes on the settings the line already uses.
• EMS and contract assembly plants – where several CM-series machines share a floor and a small common spares shelf keeps the number of different motor types down.
• In-house maintenance teams – sites that service their own placement machines and would rather fit a replacement drive than wait for an external service visit.
• Repair and refurbishment workshops – used CM402 and CM602 machines being brought back into service, where the axis motor is checked on the bench before the machine is passed on.
• Line support and machine builders – smt pick and place machine manufacturers and their service partners who need a same-platform replacement while a customer's line is standing still.

Scale & Supply Capability

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
