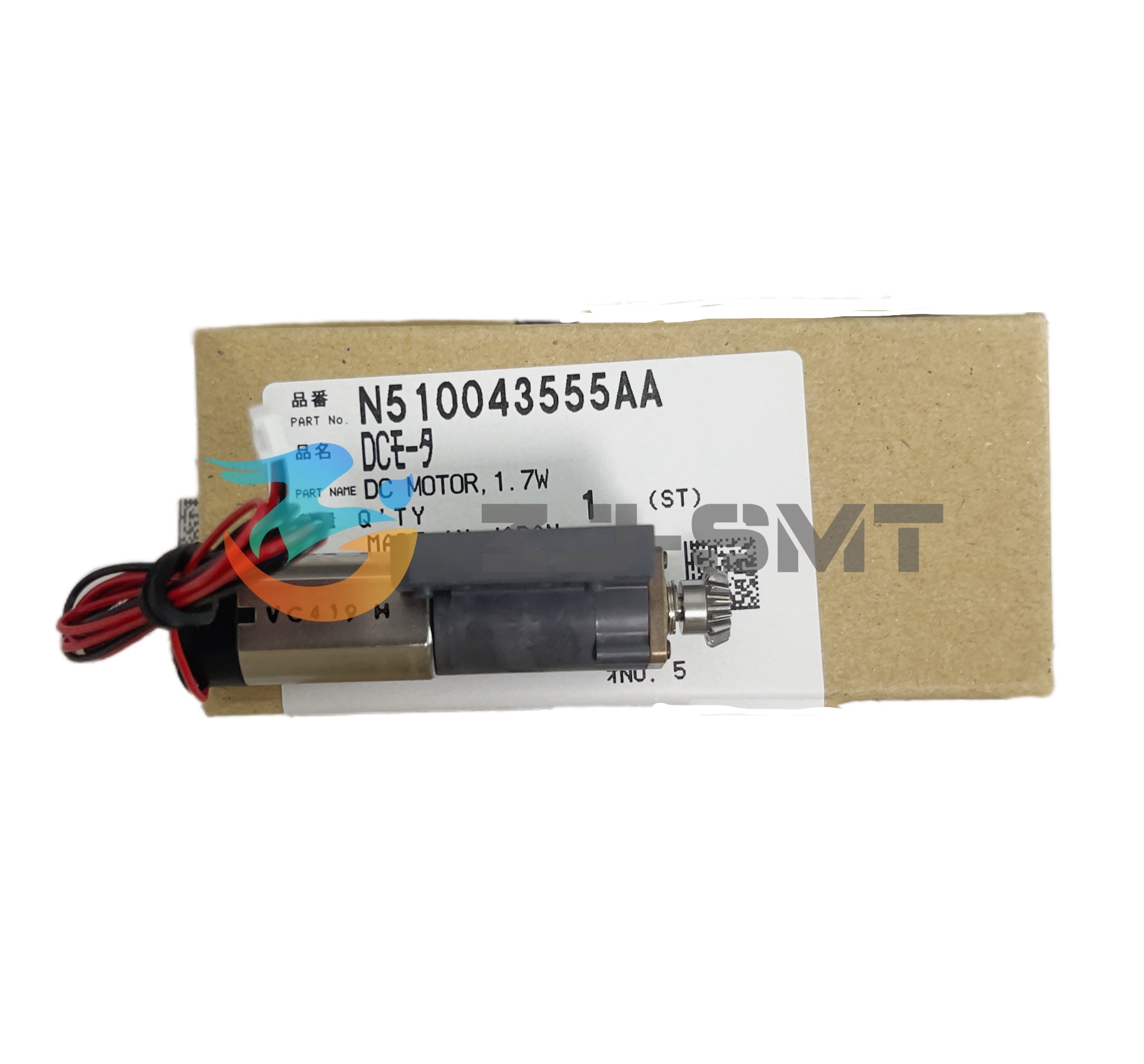

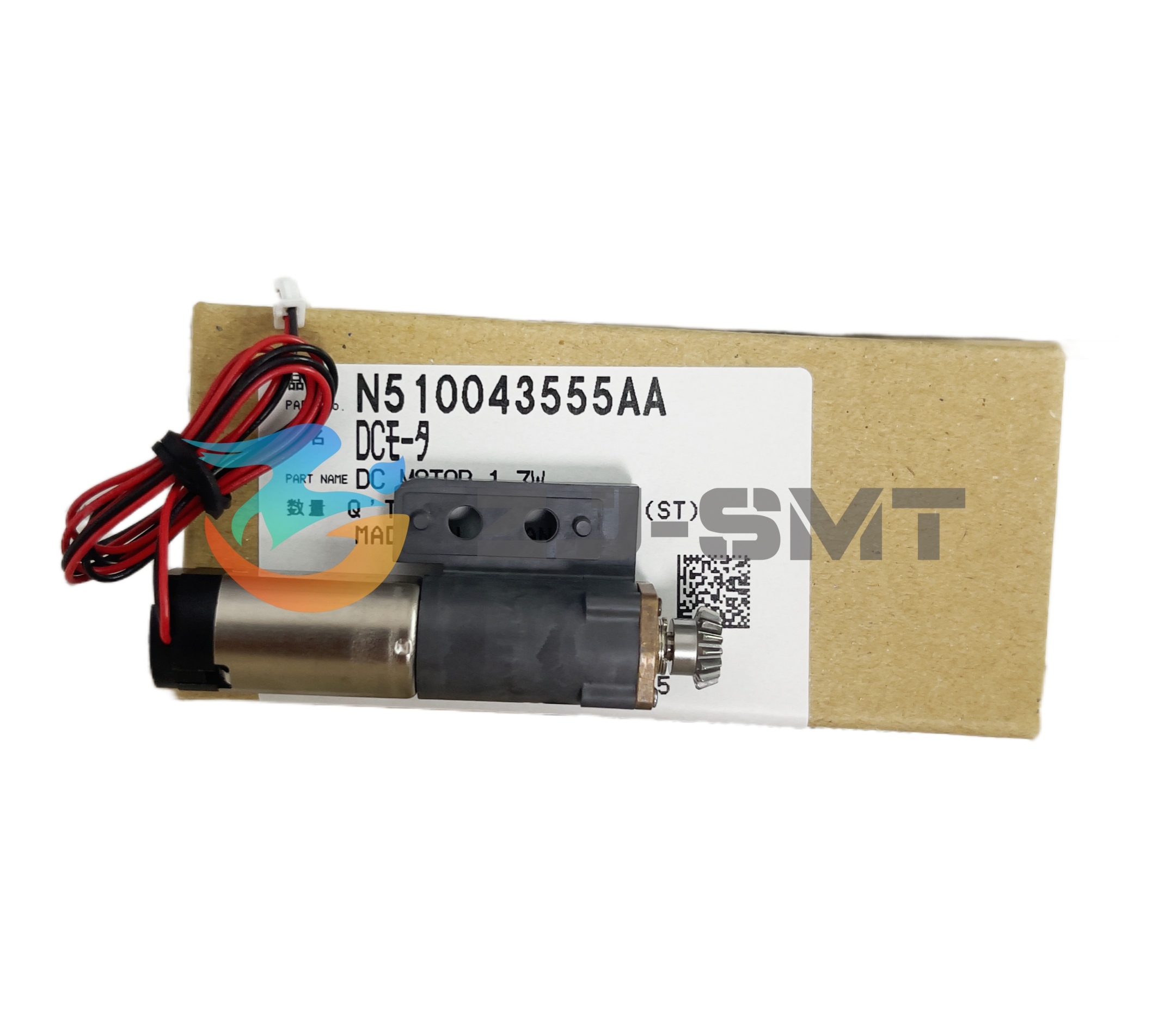

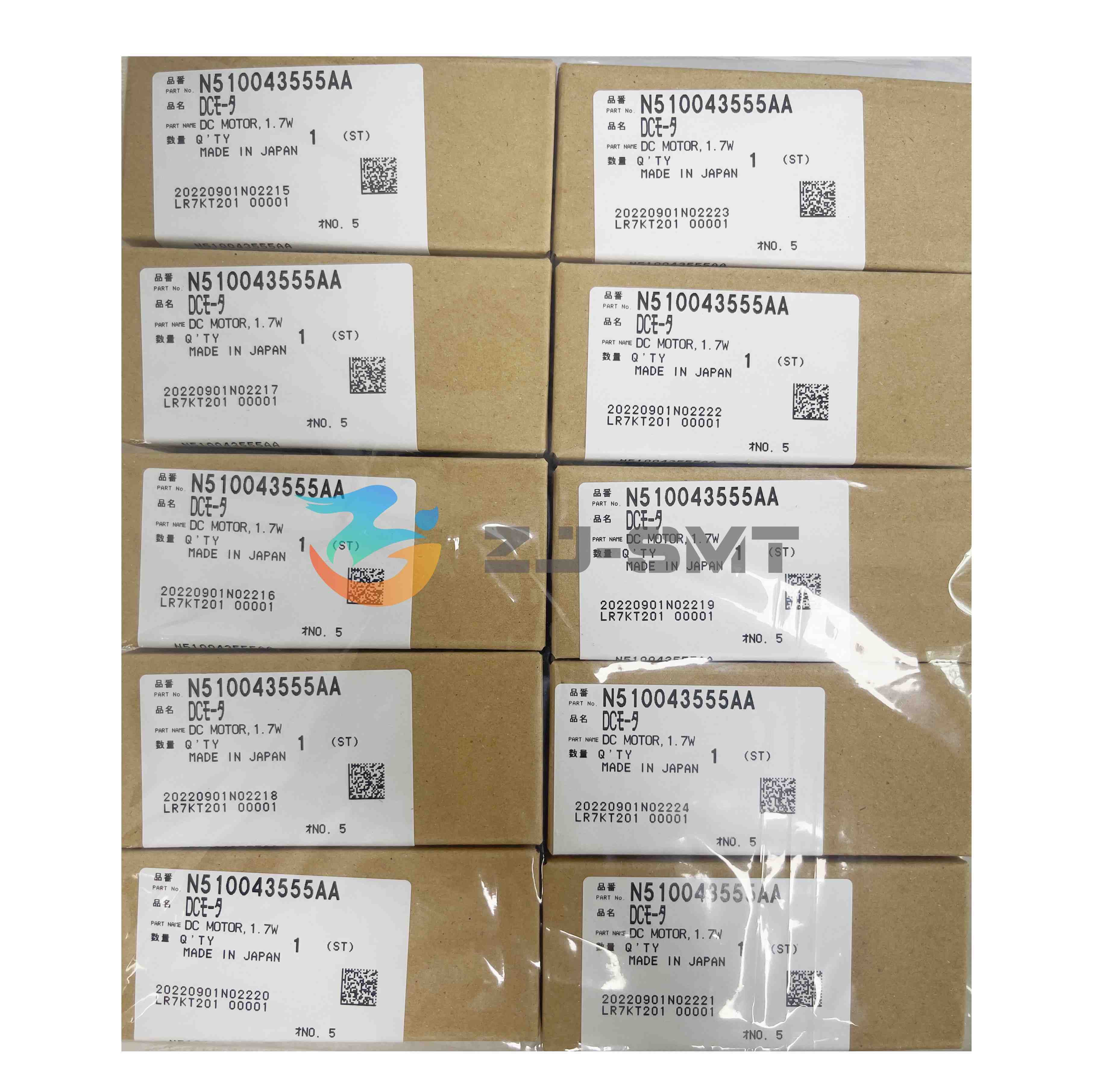

N510043555AA Panasonic Feeder DC Motor 1.7w SMT CM402 CM602 NPM

Part Number and Rating

Fitting and Fault Checks at the Bench

Feeder faults rarely point at the motor on their own, so the checks follow a fixed order. Before anything is removed, note what the slot is doing, then take the feeder off the bank and work on a clean bench with the tape path cleared. Release the connector before the mounting screws so the plug and the track behind it are not strained, and keep the screws together, because a strained or cross-threaded mount shortens the life of any drive this size. The replacement seats in the same position and should turn freely by hand before the plug goes back in. Run several feed cycles with tape loaded, confirm that the pick position has not shifted, and only then return the feeder to the line for the first boards.

Feeder and Machine Coverage

• Platforms covered: feeder positions on the Panasonic CM402, CM602 and NPM placement machines.
• Feeder model matters: feeder bodies differ by generation and width, so the drive has to match the feeder in front of you, not just the machine name on the line.
• Not a head or axis part: this unit drives the feeder. It is not a substitute for placement-head, Z-axis or conveyor motors.
• Fault scope: a feed error can also come from worn gears or a fault on the main boards in the feeder bank, so those are worth ruling out when a swap does not clear the symptom.
• Where it is used: PCB assembly factories, EMS plants and SMT pick and place machine manufacturers that keep Panasonic feeder banks running.
• Fit confirmation: the feeder model, the machine model and a photo of the motor being replaced are enough for our team to confirm the match.

Feeder-side Parts Support

ZJ-SMT supplies this feeder drive alongside the rest of the feeder-side range, so a maintenance team can cover more than one item in a single enquiry. Driver motors for other feeder and axis positions, board-level parts and mechanical feeder spares are all supplied against their part numbers, and the number stamped on the failed unit, or a clear photo of the motor and its connector, is matched against the machine and feeder model before an order is confirmed. That check matters most when two Panasonic feeder drives of different wattages sit on the same shelf.
