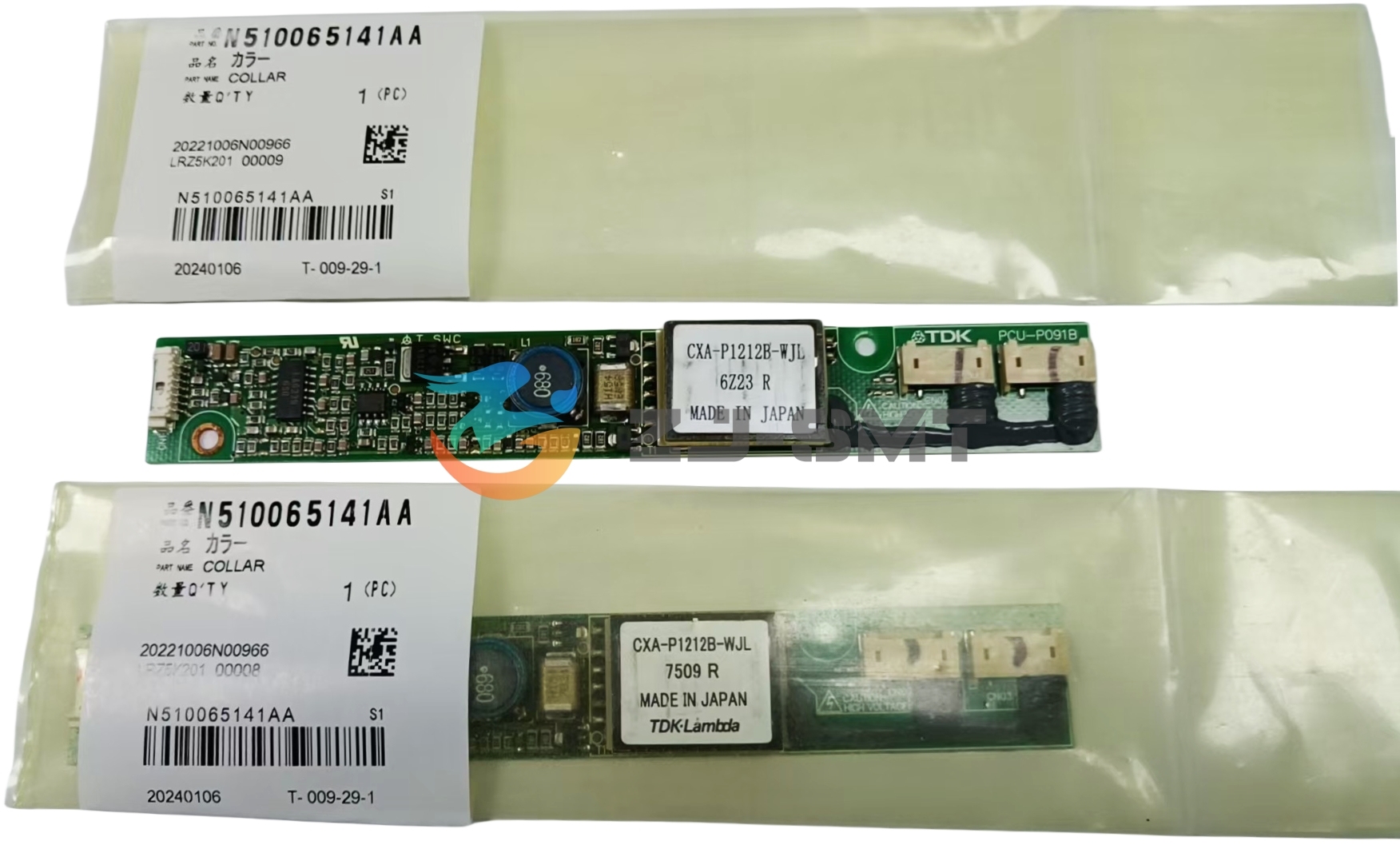

N510065141AA Panasonic Collar Monitor Board CM602 SMT Spare Paarts

Product Overview

Every CM602 line depends on a set of small boards that keep the head, feeders and safety systems talking to one another, and the collar monitor board is one of them. This replacement board is built for the Panasonic CM602 platform and takes the place of the original unit when a fault takes the machine out of production.

Because it is a single-function part, it is ordered by its own number rather than by description, which keeps a repair straightforward: identify the failed board, match the number, fit the replacement. We supply this board to SMT pick and place machine manufacturers, EMS plants and repair workshops that need an exact match for a CM602 line rather than a workaround.

Collar Monitor Board Function

• Monitoring in the loop: the board keeps watch over the collar section of the machine and reports its status back to the controller, so the head can carry on placing SMT components at normal production speed.
• A stop, not a slow drift: a monitor board that stops responding usually takes the machine down rather than causing a gradual change in placement quality, which is why replacement is an urgent job on a live line.
• Whole-board replacement: this is a single-function unit, so it is swapped as a complete board during maintenance instead of being repaired in place.
• Working through the shift: like the other boards in the CM602 set, it runs continuously while the machine is producing, so a spare on the shelf often matters more than a repair bench when a line goes down.
• Typical trigger: the machine stops during start-up or mid-run and the fault traces back to the collar monitor board.

Specifications

Machine Compatibility

This replacement board is built for the Panasonic CM602 platform, and it is ordered by its own number rather than by the job it performs. Two CM602 machines in the same workshop can be running different board revisions, so the safest check is the simplest one: read the number printed on the failed board and compare it with the number on this one.

If the marking has worn away or the board has already been pulled out, the connector layout and the machine's model plate are usually enough for our team to trace the right number. Boards from other Panasonic models carry different numbers, so if you also run CM402, NPM or another platform, list each machine separately and we will check every number against your request.

Installation & Commissioning

1. Bring the machine to a safe stop and isolate power following your CM602 service procedure before the cabinet is opened.
2. Note the position and orientation of the original board and photograph the connectors before anything is unplugged.
3. Release the harnesses carefully and place the failed board straight into an anti-static bag — the number printed on it is still useful if the fault turns out to have another cause.
4. Fit the replacement board, seat it fully and reconnect each plug until it is firmly home.
5. Power up and let the machine complete its start-up check, then run a test panel before the line goes back to full production.
6. If the same fault appears again, stop and send us the fault message and photos rather than repeating the swap.

Who It's For

• SMT maintenance engineers: they carry the uptime target for the line and want a board that matches the original number without a long search.
• PCB assembly plants and EMS factories: production teams that feel every hour of a stopped CM602 and need the replacement on site quickly.
• SMT pick and place machine manufacturers and machine refurbishers: teams putting CM602 lines back into service that need boards and motors for the same machine.
• Repair workshops and service companies: independent technicians who prefer one supplier for CM602 boards to splitting an urgent repair across several sources.
• Spare-parts distributors: resellers who want part-number coverage across Panasonic boards, motors and feeder parts.

Scale & Supply Capability

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
