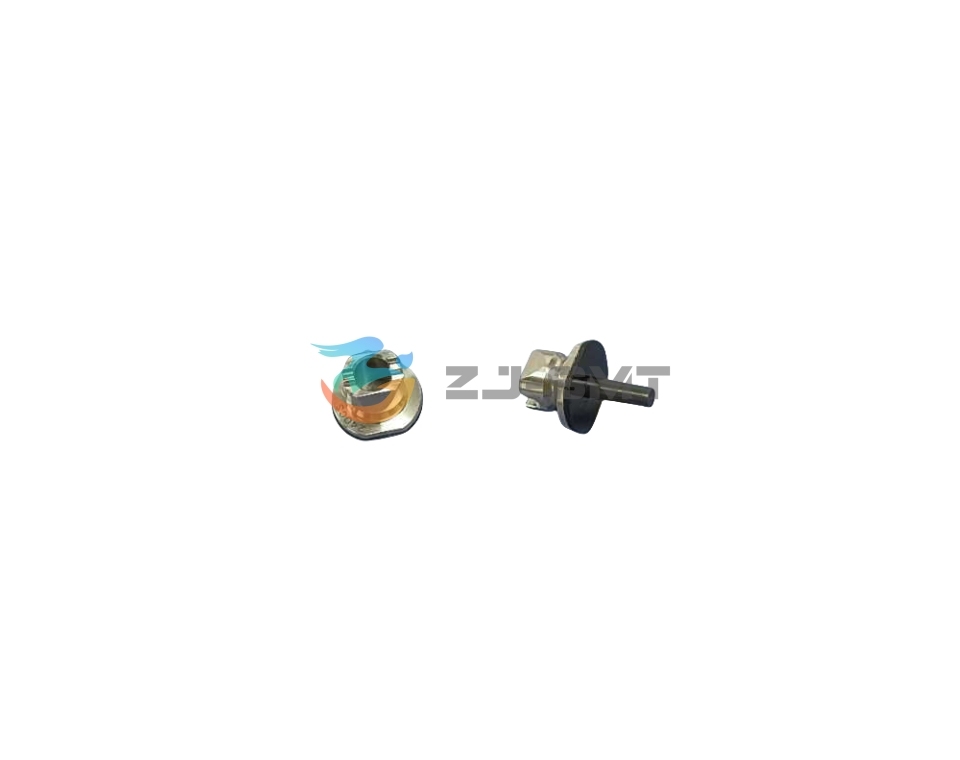

A nozzle on a running head moves up and down thousands of times, and the first things to give are the tip edge and the vacuum seal. This one uses a reinforced body with a precision-machined tip so suction stays aligned through rapid Z-axis movement instead of drifting off centre as the shift wears on. Hardened material at the working end resists tip abrasion, and a surface treatment helps keep particles from clinging to the tip, which slows vacuum contamination between cleanings. Suction flow stays consistent, so mispicks tied to a tired tip become less frequent. Every unit is measured against the original dimensions and functionally checked before packing, the same routine we apply across the range we supply to SMT pick and place machine manufacturers and contract assembly plants.
| Specification | Detail |
|---|---|
| Model | 240CS SMT nozzle |
| Part number | N610040853AC |
| Machine platforms | Panasonic CM, DT and NPM |
| Head compatibility | Panasonic 240CS placement heads |
| Function | Vacuum pickup and release of surface-mount parts |
| Body construction | Reinforced body with precision-machined tip |
| Tip treatment | Surface-treated to reduce particle adhesion |
| Vacuum path | Centre-aligned shaft for consistent suction flow |
| Mounting | Outer dimensions, mounting depth and vacuum port aligned to the original design |
| Installation | Direct fit, no recalibration required |
| Pre-shipment check | Dimensional inspection and functional validation |
| Supply type | Replacement part produced to the original Panasonic specification |
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
It is built for Panasonic 240CS placement heads and fits CM, DT and NPM platforms. The outer dimensions, mounting depth and vacuum port position follow the original Panasonic design, so it seats the same way as the nozzle you are removing. If your head carries a different marking, send a photo and we will check the right industrial nozzles for that machine before you commit.
It covers the usual spread on a mixed board: ICs, passives, connectors and similar SMT components. Uniform suction and a stable tip angle keep small parts centred during pickup, which is where dense layouts usually lose yield. Very large or unusually heavy parts may call for a different 240-series tip, so send the component list if you are unsure.
No. It is produced to the original Panasonic dimensions and mounts directly onto the head, with the vacuum port and mounting depth already aligned. On most lines it can be fitted and run without touching placement parameters. As with any nozzle change, run a few test placements and check them before releasing the machine to production.
Wipe the tip with a soft, lint-free cloth and a mild cleaning agent, and keep the vacuum path clear of paste residue. Avoid abrasive tools or sharp metal on the tip edge, because that is what changes the pickup angle. Store spares in their packing until needed, away from dust and moisture, and handle them by the body rather than the tip.
Watch for a rise in mispicks, parts picked slightly off centre, and placements that drift on dense boards even though feeder and vision settings have not changed. Under magnification, a worn tip shows a rounded edge, nicks or a polished, contaminated surface. A nozzle that no longer holds suction cleanly usually shows these signs before it fails outright.
Every unit passes a dimensional check against the original specification and a functional check of the vacuum path before it is packed. It is the same routine we apply across the range we supply to SMT pick and place machine manufacturers and contract assembly plants. That is also why we ask for the head model and a photo with each request — it lets us confirm the match before the part leaves the warehouse.
