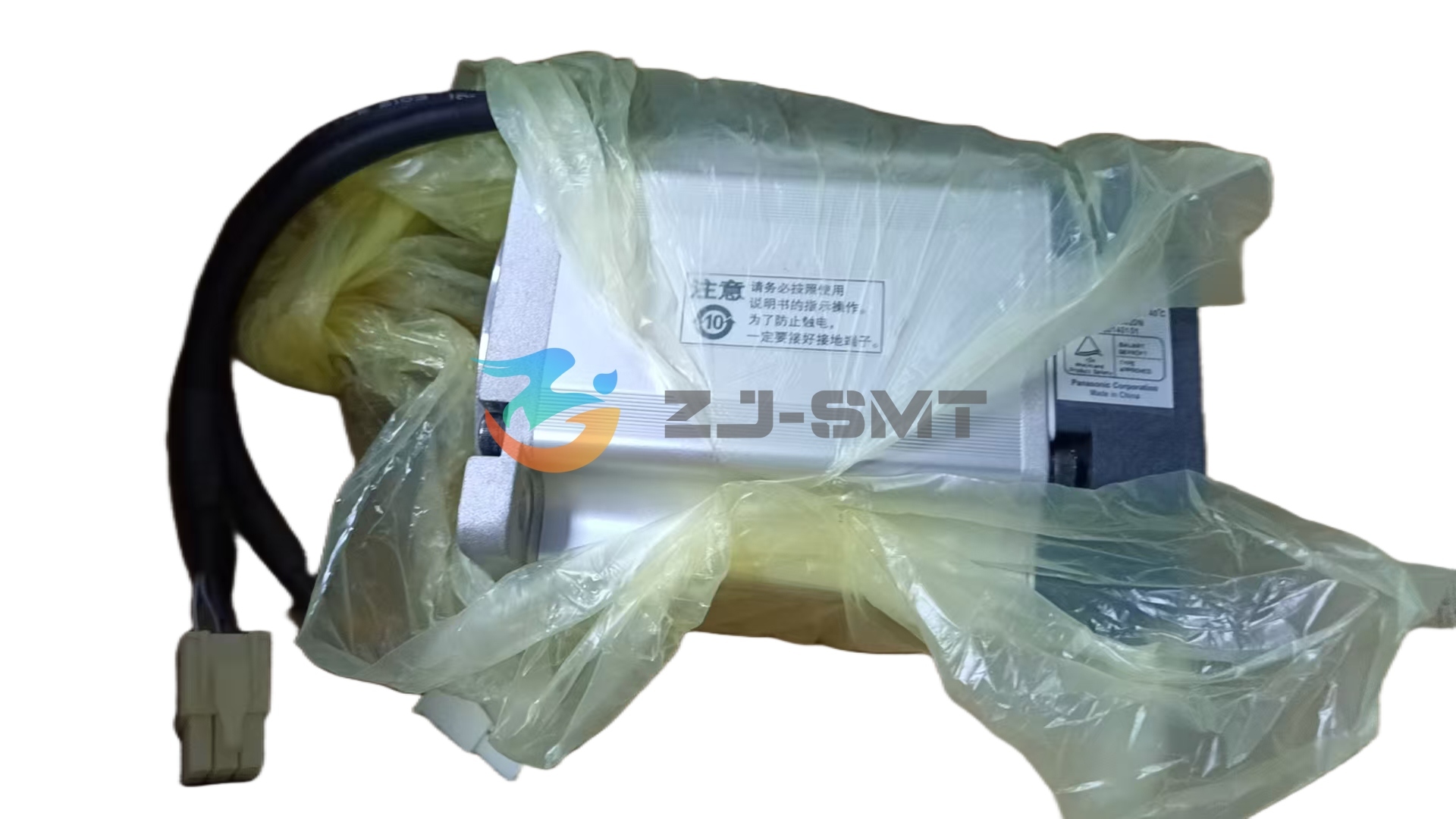

N610052028AA

Key Features

• Factory-matched fit. Mounting geometry, gear alignment and signal pinout follow the original Panasonic feeder assembly, so the motor seats on the existing fixing points instead of needing adapters or slot modification.
• Board-level communication. The electrical interface and encoder feedback are designed to talk directly to the feeder board, so closed-loop control and signal timing stay intact after the swap.
• Real-time position feedback. An integrated encoder reports motor position back to the control system continuously, letting the drive correct as it goes rather than running blind.
• Built for continuous duty. Wear-resistant bearings and commutator segments, together with a rotor designed for high activation frequency, let the motor run for thousands of operational cycles before servicing is needed.
• Steady output under fluctuating load. Balanced inertia and minimal thermal drift keep torque stable across high-duty cycles, so feed timing does not wander as the shift goes on.

Specifications

Installation & First-Run Checks

1. Power down the machine, lift the feeder out of its lane and set it on a clean bench.
2. Photograph the connector route, gear position and mounting screws before you disturb anything, so the feeder goes back together the same way.
3. Unplug the cable from the feeder board and release the motor from its mounting points.
4. Seat the replacement motor on the original fixing points, align the gear as it was set on the old unit, and push the connector home until it latches. Because the layout follows the original design, most SMT pick and place machine manufacturers handle this as a bench swap rather than a feeder rebuild.
5. Refit the feeder, run a test feed with a scrap length of tape and check that it advances smoothly without slipping or stalling.
6. Confirm pickup alignment and feed timing on the first production run, then check once more at the end of the shift.

Applications on the Line

• High-volume production shifts. On a line running at rate, a fresh pocket has to be presented for every head cycle, so the drive stays in near-continuous motion from the start of the shift to the end.
• Dense boards with very small components. Tight placement windows leave little tolerance for tape shift, and accurate indexing is what keeps the nozzle picking from the centre of the pocket rather than the edge.
• Multi-lane feeder banks. A machine draws from several feeders at once, and one lane that feeds late or stalls will hold up the head, so each drive has to index in step with the rest.
• Planned maintenance stops. Maintenance teams fit a replacement during a scheduled service window instead of waiting for a drive failure to stop the line mid-shift.
• Feeder rebuild benches. Repair companies and in-house workshops rebuilding feeder assemblies use this motor when a drive has reached the end of its life, often alongside other feeder parts going into the same service.
