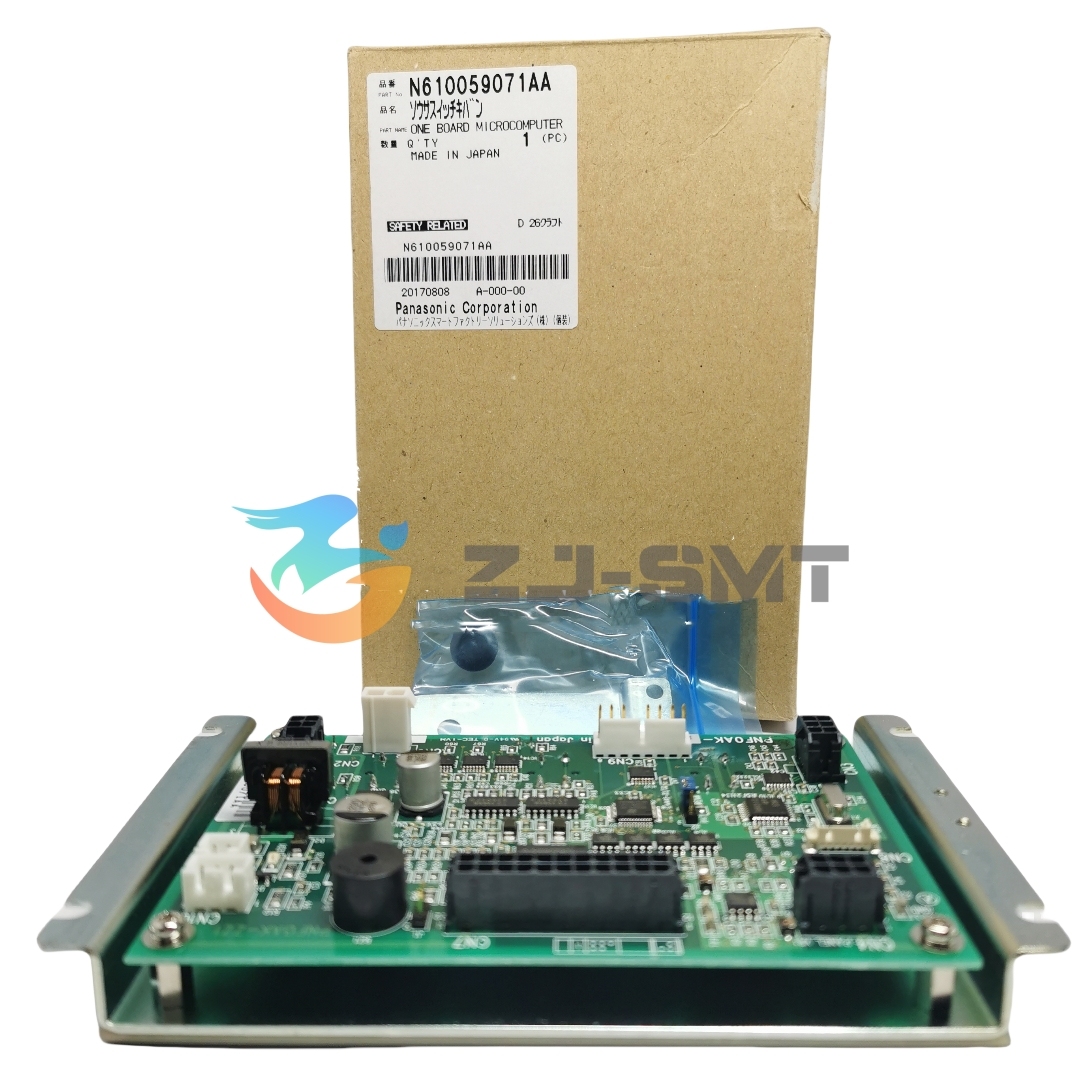

N610059071AA Panasonic One Board Microcomputer SMT Spare Parts

Product Overview

Panasonic is one of the most widely recognized SMT pick and place machine manufacturers, and its machines depend on a set of control boards. This one board microcomputer is the assembly that carries the microcomputer and the circuitry around it on a single board, rather than spreading that work across several separate cards.

We supply it as a direct replacement, so it takes the position, mounting points and connector layout of the part it replaces. Most buyers are maintenance engineers, line supervisors and planners who need a machine running again after a board fault, or who want a spare on the shelf before one stops a shift. Day to day the board sits inside the control cabinet and is only touched during service work; it is replaced because of a fault rather than on a fixed interval.

This is a board-level part supplied on its own. The other boards, motors, drivers and feeders in the same cabinet are separate items, each ordered by its own number.

Specifications

Part Identification

1. Note the part number printed on the board you are removing and the model of the machine it came from. The number on the board is the reference that matters most.
2. Take clear photographs of the board, including both faces and the connector side, so the layout and connector type can be compared against the replacement.
3. Record where the board sits in the machine, which unit or slot, if the machine carries more than one board of the same family.
4. Pass the machine model, board number and photographs to our team. We check the number against current supply and confirm the match before you place the order.
5. Mention any second or superseded number printed on the original board. Cross-checking older references is part of the service and helps avoid a wrong delivery.

Integrated Board Design

• One board, one replacement: the microcomputer and its supporting circuitry live on a single assembly, so a control fault is normally cleared by fitting one board instead of chasing a set of cards.
• Fewer connection points: with less board-to-board linking there are fewer plugs and ribbon joints to work loose or turn intermittent, which matters on machines that have already been in service for years.
• Familiar layout: the replacement follows the original footprint and connector arrangement, so the wiring goes back the way it came and no re-routing is needed.
• Straightforward spares planning: one part number covers the whole board, so a maintenance team can list it, hold it as a spare and hand the same reference to whoever carries out the repair.

Installation & Handling

1. Power the machine down and isolate it before opening the control cabinet. Never remove a board with the machine energised.
2. Photograph the original board and its connectors before unplugging anything, so the replacement goes back in the same order.
3. Work at a static-protected bench with an ESD wrist strap, and hold the board by its edges only.
4. Check the replacement's connectors and pins before fitting, then seat every plug fully and refit the retaining screws and clips.
5. On start-up, watch the machine through a full self-check and run a short test cycle on one panel before releasing the line to full production.

Buyer Applications

• PCB assembly plants: holding a spare so a failed board does not idle a line while a replacement is sourced.
• Contract manufacturers and EMS plants: useful where several SMT pick and place machine manufacturers run on one floor and maintenance teams need a board they can match quickly by number.
• SMT maintenance teams: the board is fitted during planned service windows or emergency repairs, so a like-for-like replacement keeps the work predictable.
• Repair and refurbishment workshops: a sound control board is often the difference between a machine going back into service and being broken up.
• Spare-parts dealers: a board that moves regularly is worth keeping on the shelf where local customers run Panasonic equipment.

Scale & Supply Capability

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
