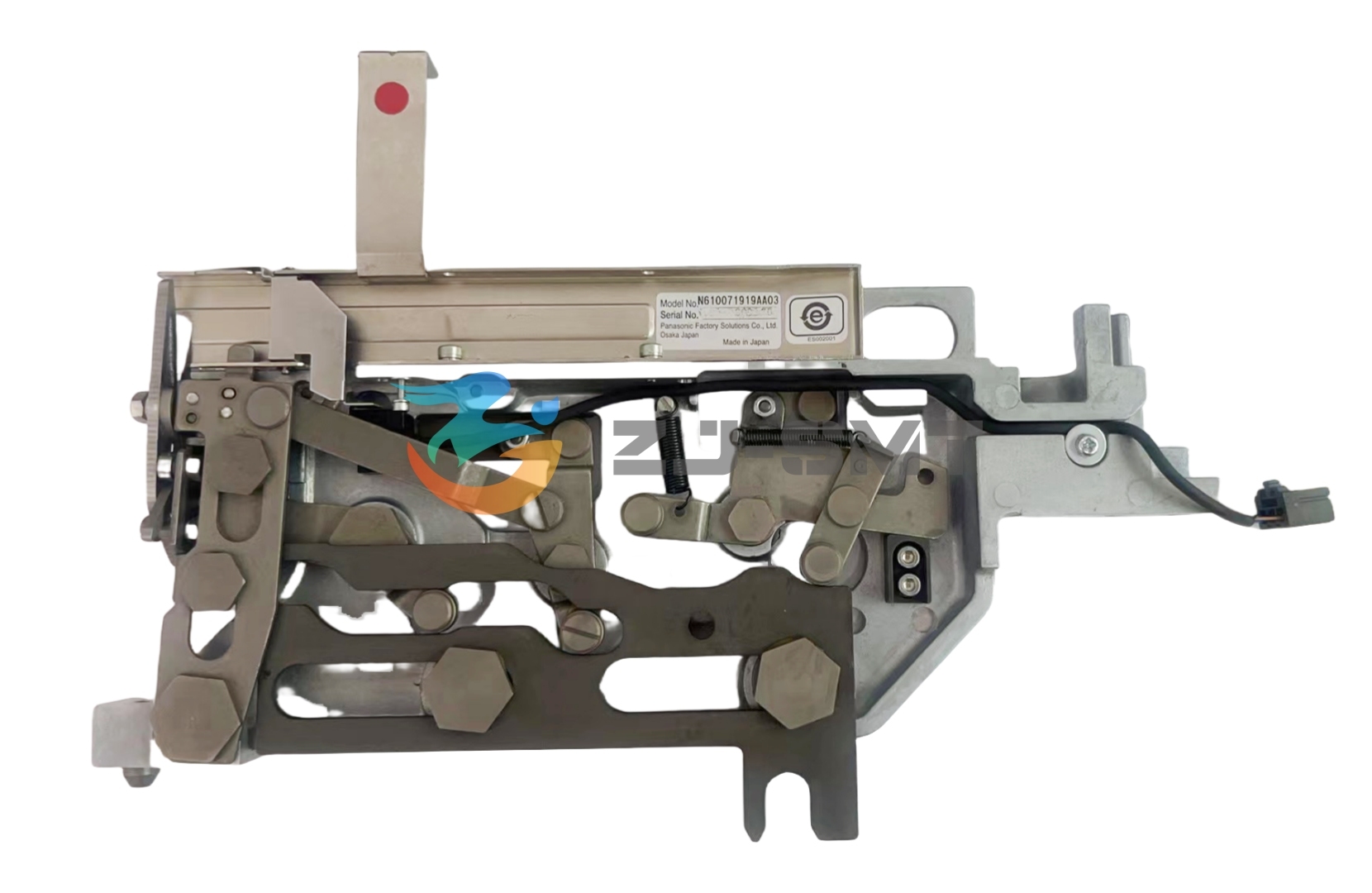

N610071919AA03 Panasonic Tape Feeder

Key Features

• Ordered by its own Panasonic part number — the feeder carries a dedicated part number, so your team reorders the exact item rather than a lookalike that has to be adapted to fit.
• Made for the insertion cycle — it presents taped axial components to the insertion head at a steady position, which is what keeps placement rhythm even across a long production run.
• A direct replacement for a worn unit — when a feeder on the line starts to hesitate, mis-index or chew tape, this unit returns the position to normal without changes to the surrounding hardware.
• A spare that pays for itself — keeping one on site turns a feeder fault into a quick swap instead of a wait for delivery, so a single incident does not become a lost shift.

Feeder Specifications

Insertion Line Applications

• Axial insertion lines in PCB assembly plants — the feeder runs on automated insertion machines where taped axial lead components are placed into through-hole positions, keeping the head loaded through a full batch.
• Changeover between axial jobs — plants that switch component types between runs keep a spare feeder for each head, so the head does not sit idle while a feeder is stripped and rebuilt.
• EMS and contract manufacturers — a contract line that wins new axial work usually needs extra feeders rather than extra machines, and a replacement unit goes into service quickly.
• Mixed SMT and AI production floors — lines that sit next to platforms from SMT pick and place machine manufacturers keep both spare sets on the same shelf, so one order covers the whole floor.
• Refurbishment and repair workshops — workshops rebuilding Panasonic insertion machines fit a replacement feeder when the original is damaged beyond repair.

Handling & Storage

Treat the feeder as a precision mechanism. Load tape with the machine in its service position, keep the tape channel clear of adhesive residue and paper dust, and never force a jammed tape through the indexing area — a bent guide or lever costs more than the minute saved.

Storage matters as much as handling. Keep spare feeders covered and away from areas where the plant produces metal dust or board debris, because a feeder left on an open bench collects particles in the tape path and starts to misfeed long before it is worn out.

At each scheduled maintenance window, look over the tape path, the levers and any rollers, and note places where tape drifts or components sit unevenly in the carrier. If a feeder has been dropped, or keeps misfeeding after a clean and a fresh tape, take it out of rotation and have it checked instead of leaving it on the head.

Scale & Supply Capability

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
