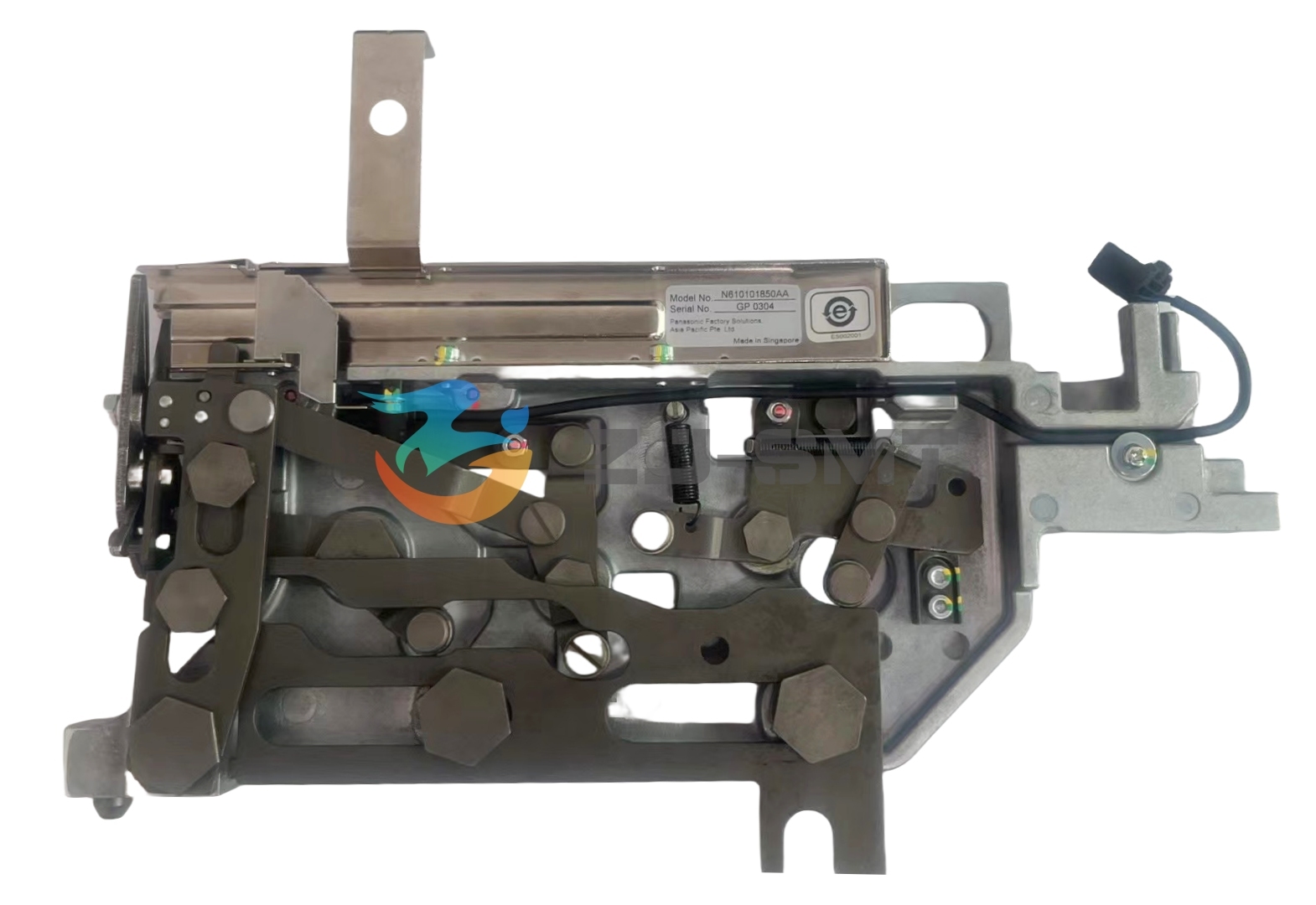

N610101850AA Panasonic Tape Feeder

Product Overview

The N610101850AA tape feeder is the Panasonic AI feeder for the RL131 and RL132 axial lead component insertion machines. It mounts in the machine's feeder bank, holds the taped bandolier and advances it in step so the insertion head can take each axial component in sequence — the part feeder duty that keeps an axial line running at a steady rhythm rather than in bursts. Maintenance teams fit one when the feeder already on the line starts to misfeed or drift; spare-parts buyers keep one on the shelf so a single worn feeder cannot stop a shift. Alongside this model we supply spares for Panasonic and other pick and place machine manufacturers, covering feeders, nozzles, valves, motors and boards.

Specifications

Part Number Reference

1. Read the full number printed on the feeder label. Panasonic feeder numbers differ by only a few characters, so check the label twice under good light before writing anything down.
2. Record the machine model and the feeder position next to the number, so the replacement goes back into the same slot it came out of.
3. If the label is worn, faded or missing, a clear photo of the feeder body is usually enough — we check Panasonic feeder parts against the cross-reference we keep and come back with the number that matches.
4. Compare the number on the replacement with the old feeder before fitting it, especially where two numbers look almost identical.
5. Keep the old feeder aside until the replacement is in place, so a character on the label can be checked again if anything reads differently.

Maintenance & Care

Most axial feeder faults start in the tape path, so routine care is mostly about keeping that path clean. Wipe the feed track and the area around the tape guide with a dry, lint-free cloth at each scheduled maintenance stop, and clear paper dust and tape residue before it builds up. Check the feeder body for bent or worn parts, and make sure the unit seats squarely in the feeder bank — a feeder that sits proud will misfeed long before it fails outright. Carry the unit by the body rather than by the tape arm, and keep spares in a dust-free cabinet instead of on the floor beside the line. The two habits that cause the most damage are forcing a jammed tape through the track and running the feeder with a damaged cover in place.

Related Feeder Spare Parts

• Filters — X01L52027 and X02G02119, held in the same Panasonic spare parts range as this feeder.
• Pusher — N4210400-048.
• Collar — N210131187AC and N210131187AA.
• Shifter (B) — N45213242.
• Timing pulley — N210149186AA.
• Block and bracket — N210084450AA.
• Range coverage — every item above is stocked in the same Panasonic feeder parts range as this unit, and we also source parts for pick and place machine manufacturers' platforms, so insertion and placement spares can be handled in one conversation.

Scale & Supply Capability

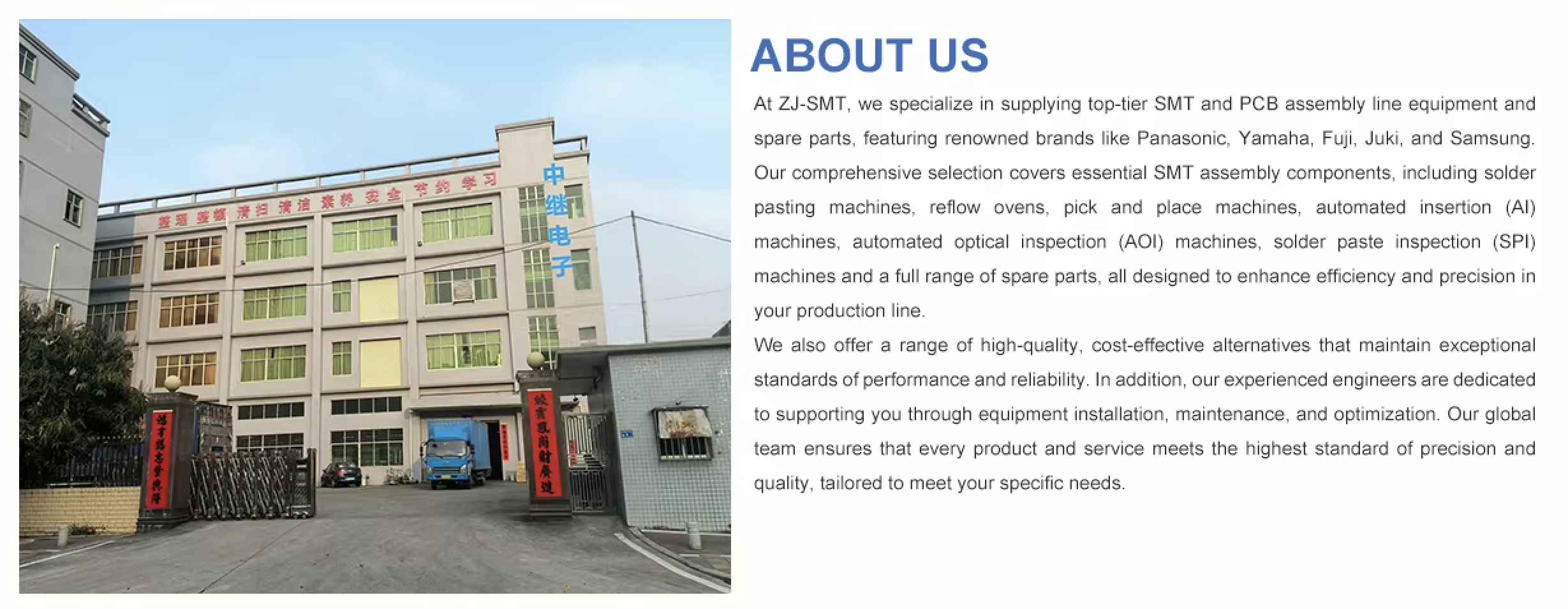

ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
