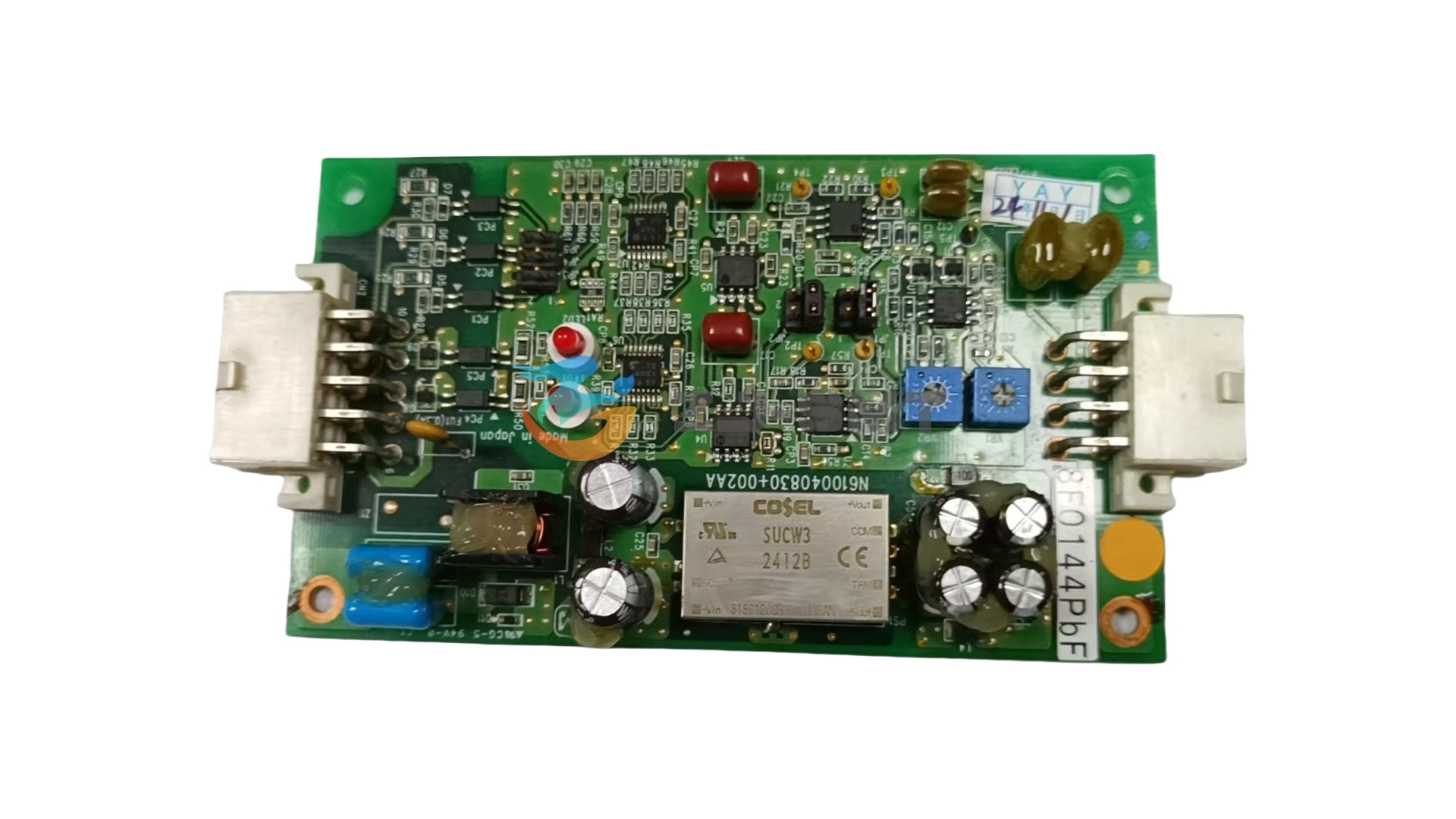

This insertion detection card keeps the detection position on the Panasonic AV132 automated insertion machine working as it should. It confirms that an inserted lead has been placed before the machine indexes to the next position, and it is the board to change when that confirmation stops coming through cleanly. Supplied against the AV132 detection part number, it sits in the same connector position as the card it replaces. Most orders go to maintenance engineers, MRO buyers and repair workshops that want a working spare on the shelf, or that have to get a stopped line back into production on the same shift.
| Part number | N610129484AA |
| Component type | Insertion detection card |
| Machine compatibility | Panasonic AV132 |
| Machine type | Automated insertion machine for through-hole assembly |
| Function | Detects insertion and feeds the result back to the machine control |
| Supply type | Replacement spare part, supplied ready to fit |
| Product category | Motors, drivers and boards |
| Fitting style | Board-level plug-in card for the existing detection slot |
| Location | Installed in the AV132 control area |
| Identification | Board number printed on the card itself |
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
It is supplied for the detection position on the Panasonic AV132 insertion machine. Fit is tied to that machine and to the part number on the board, so match both against your machine before you order the replacement.
This card is supplied for the AV132. If you also run other AV-series insertion equipment, send us the number on the card in each machine — we check every position on its own number rather than assuming a shared part.
We supply it as a replacement for the AV132 detection position, identified by the same Panasonic part number. If your process calls for a particular condition or source, tell us what you need and we will confirm what is available.
It is a board-level replacement rather than a machine rebuild, so a plant maintenance technician can normally handle it. Power down, observe static precautions, swap the card and reseat the connectors, then allow time for a short verification run before handing the line back to production.
Keep it in its anti-static bag on a dry, dust-free shelf with the part number visible on the outside, so it can be matched to the right machine. Do not stack heavy spares on top of the board, and check the bag for damage before you take the card out to fit it.
Yes. Alongside this card we can supply valves, feeders, nozzles, motors, drivers and boards for the AV series and other Panasonic insertion platforms. The same range goes out to SMT pick and place machine manufacturers, EMS plants and repair workshops, so several parts for one maintenance window can be checked together.
