Platform Overview

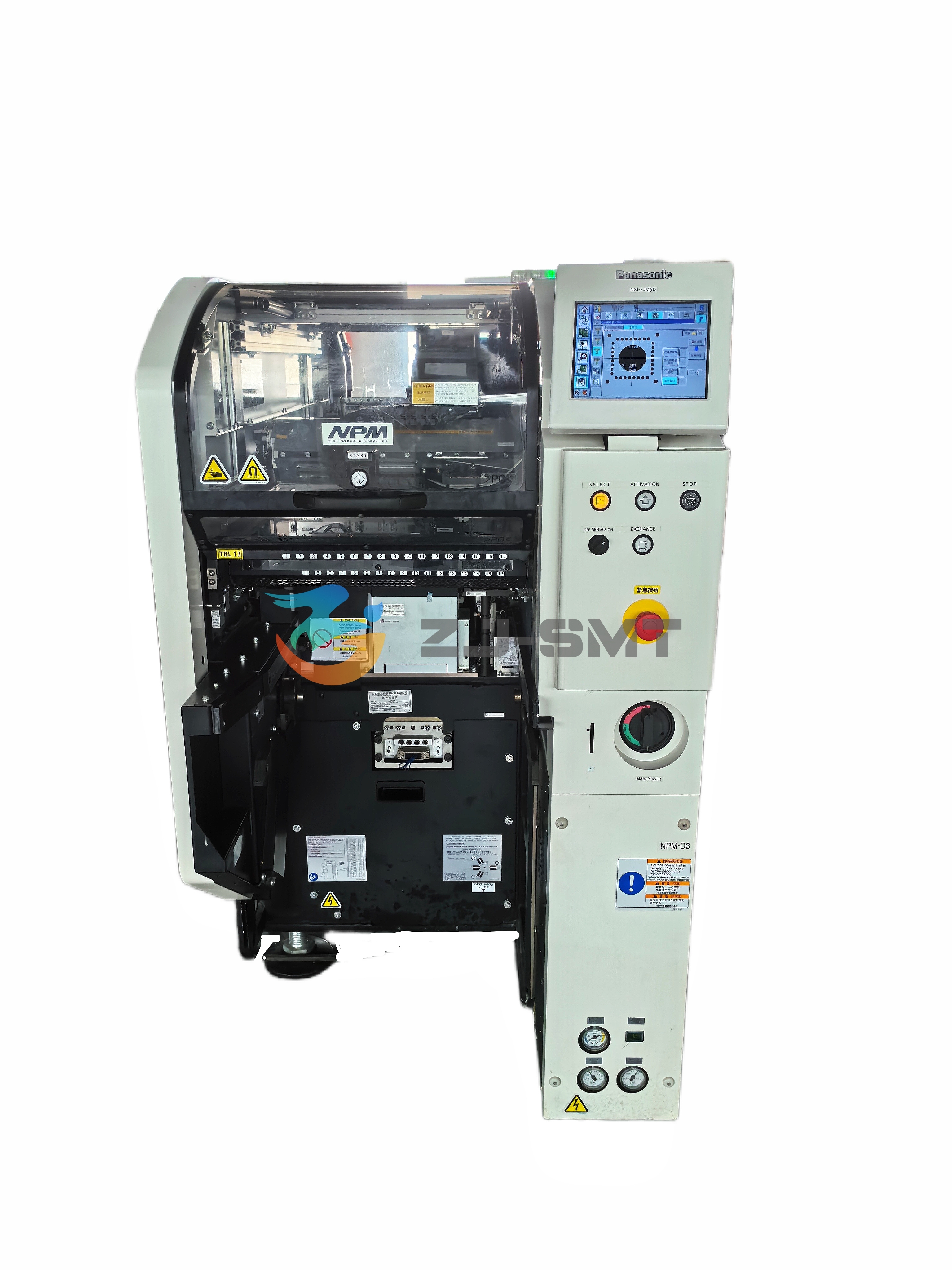

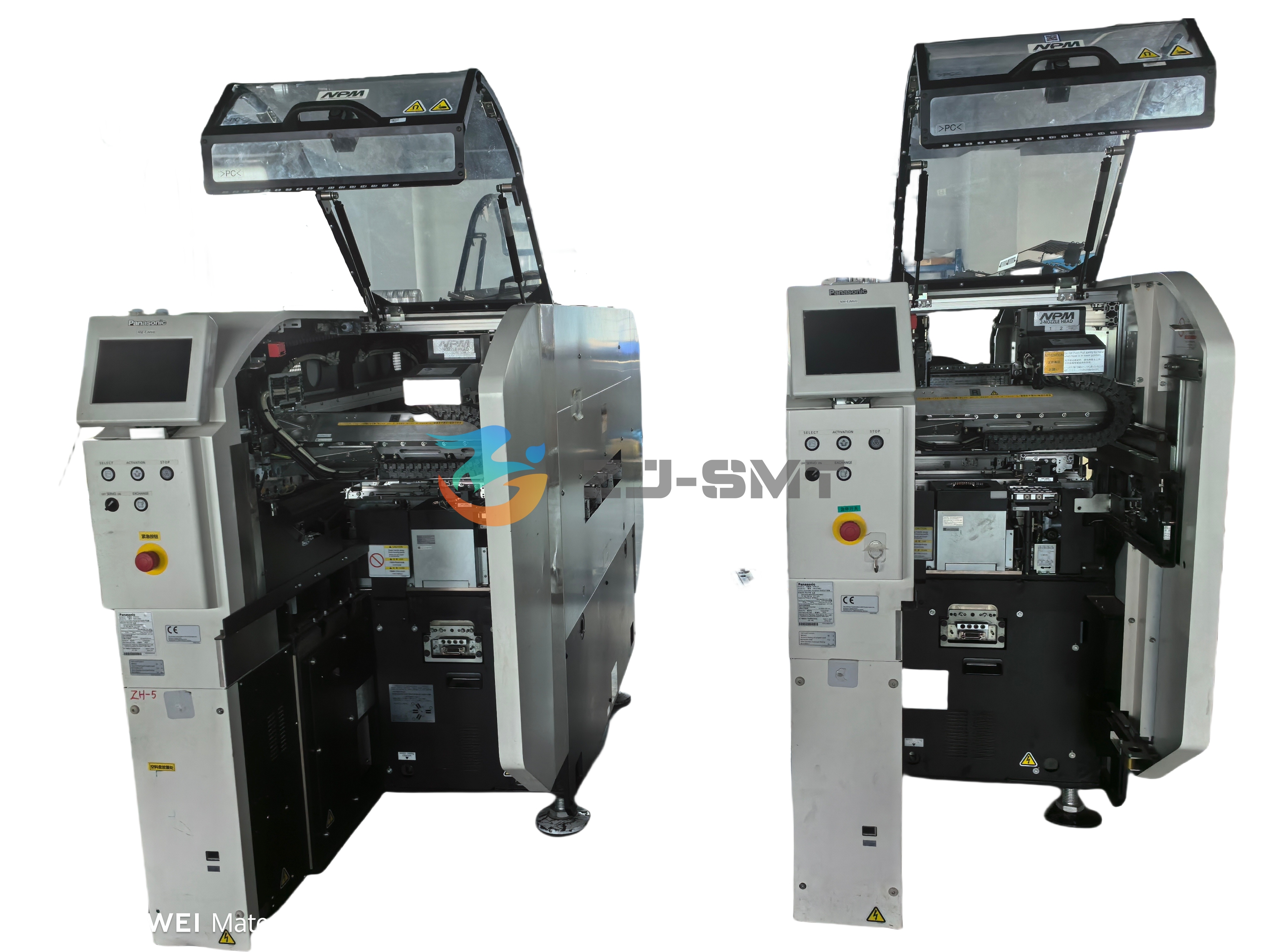

This Panasonic SMT placement machine is a modular platform built for high-volume production without giving up high-mix flexibility. Dual placement heads handle a wide spread of SMT components, different sizes and shapes included, so one line can run several products instead of just one. Manufacturers usually bring this machine in when they are adding placement capacity, replacing an aging placer, or moving a product family onto a faster platform. Because it belongs to Panasonic's NPM series, the line can be configured around your board mix instead of forcing the mix around the machine. We supply it with matched feeders, nozzles and spare parts, and work as SMT pick and place machine manufacturers, suppliers and traders of SMT and AI equipment, so the machine, the consumables and the technical support come from one source.

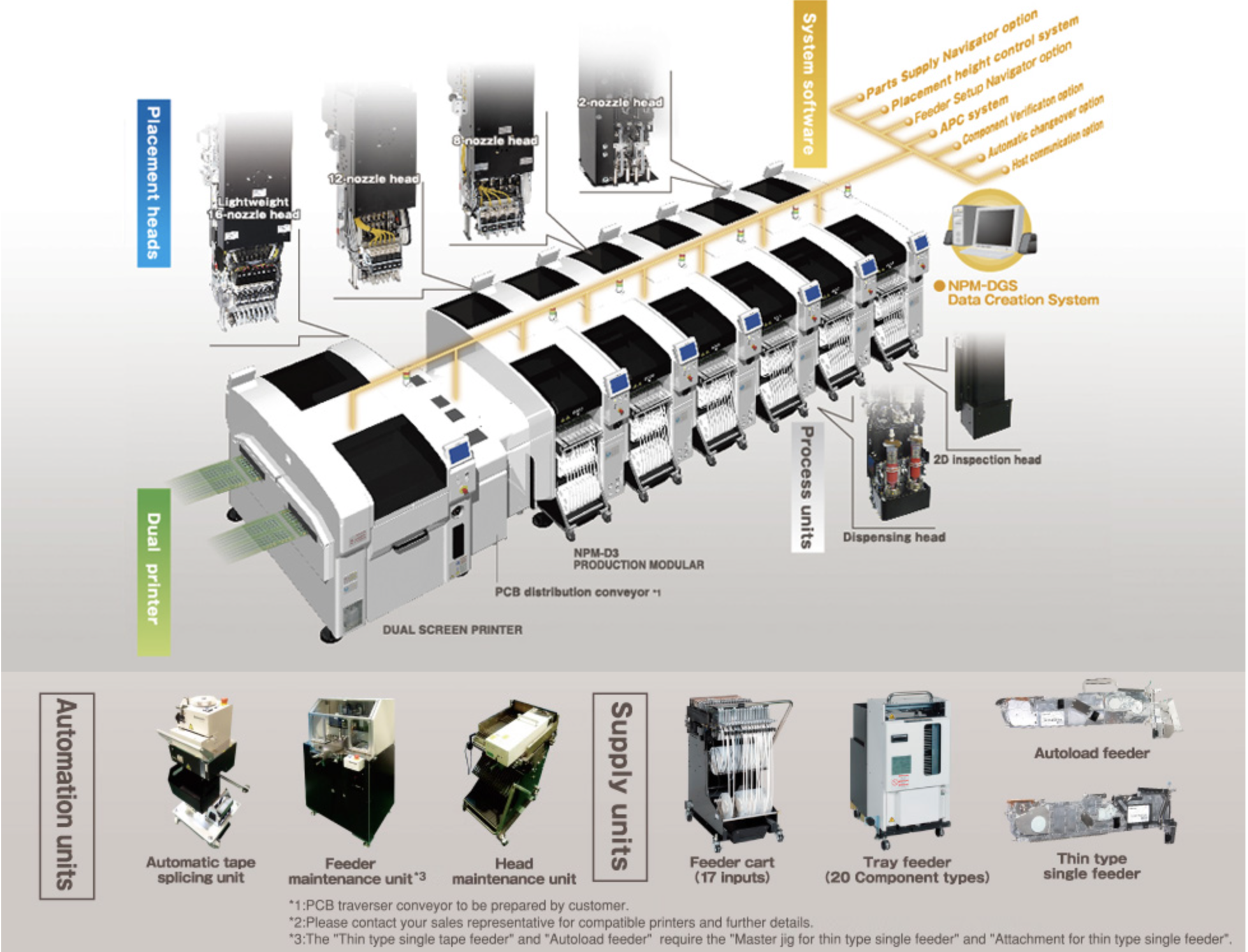

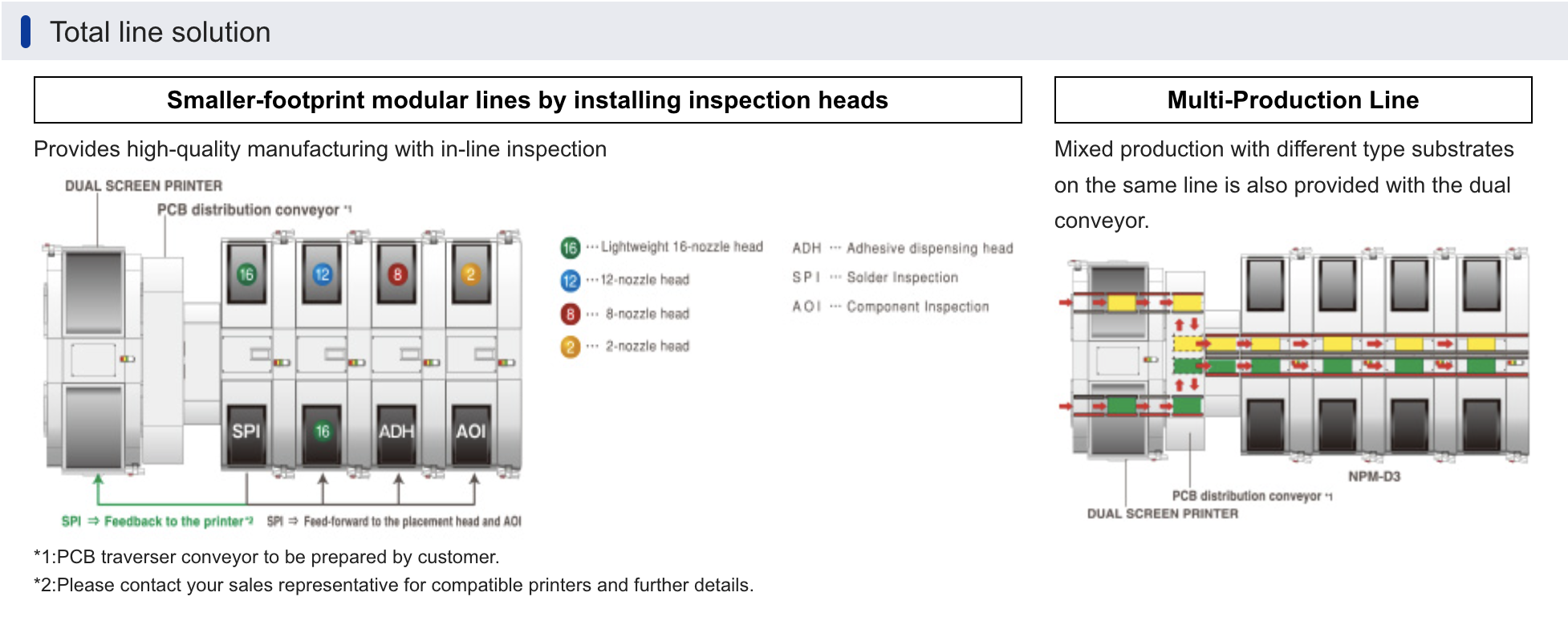

Speed only pays off when the line around the machine keeps up, and that is what the platform is built around. Printing, placement and inspection are integrated into one process flow, so boards do not sit waiting between separate handoffs. System software then covers the line, the wider floor and the factory as a whole: production plans feed into line operation monitoring, and supervisors can see how a shift is actually running instead of reading it off a clipboard. Operators program each project through an intuitive interface, and when a product changes, the adjustment happens in the control system rather than in hardware. That is where low disruption and high uptime come from on a busy floor.

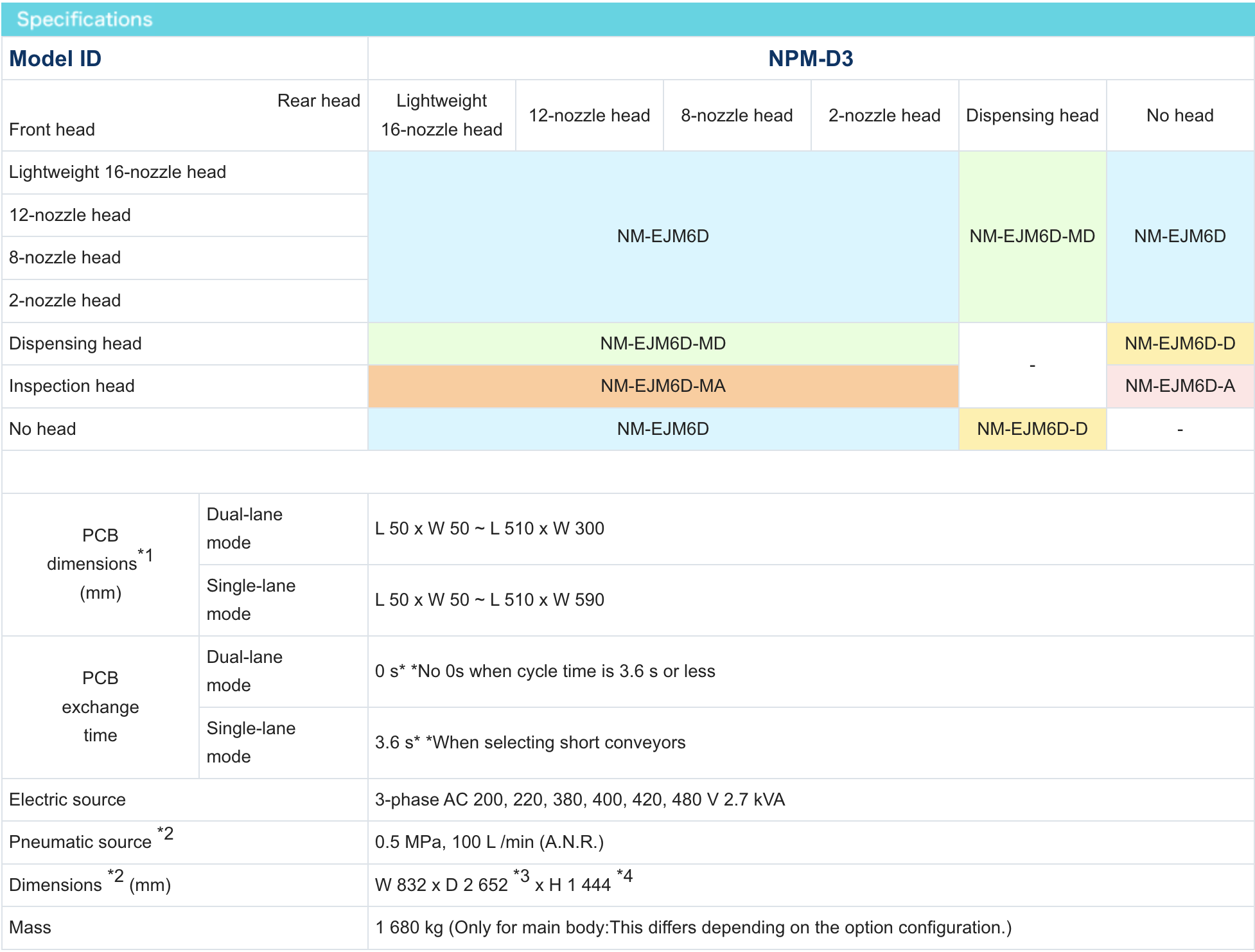

| Brand | Panasonic |
| Model | NPM-D3 |
| Machine type | Automated SMT pick and place machine |
| Platform | Panasonic NPM modular series |
| Placement heads | Dual head |
| Module layout | Configurable, with plug-and-play head positions |
| Component range | Wide range of sizes and shapes |
| Process integration | Printing, placement and inspection in one flow |
| Line control | System software covering line, floor and factory |
| Production planning | Line operation monitoring support |
| Operator interface | Intuitive programming and adjustment |
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.

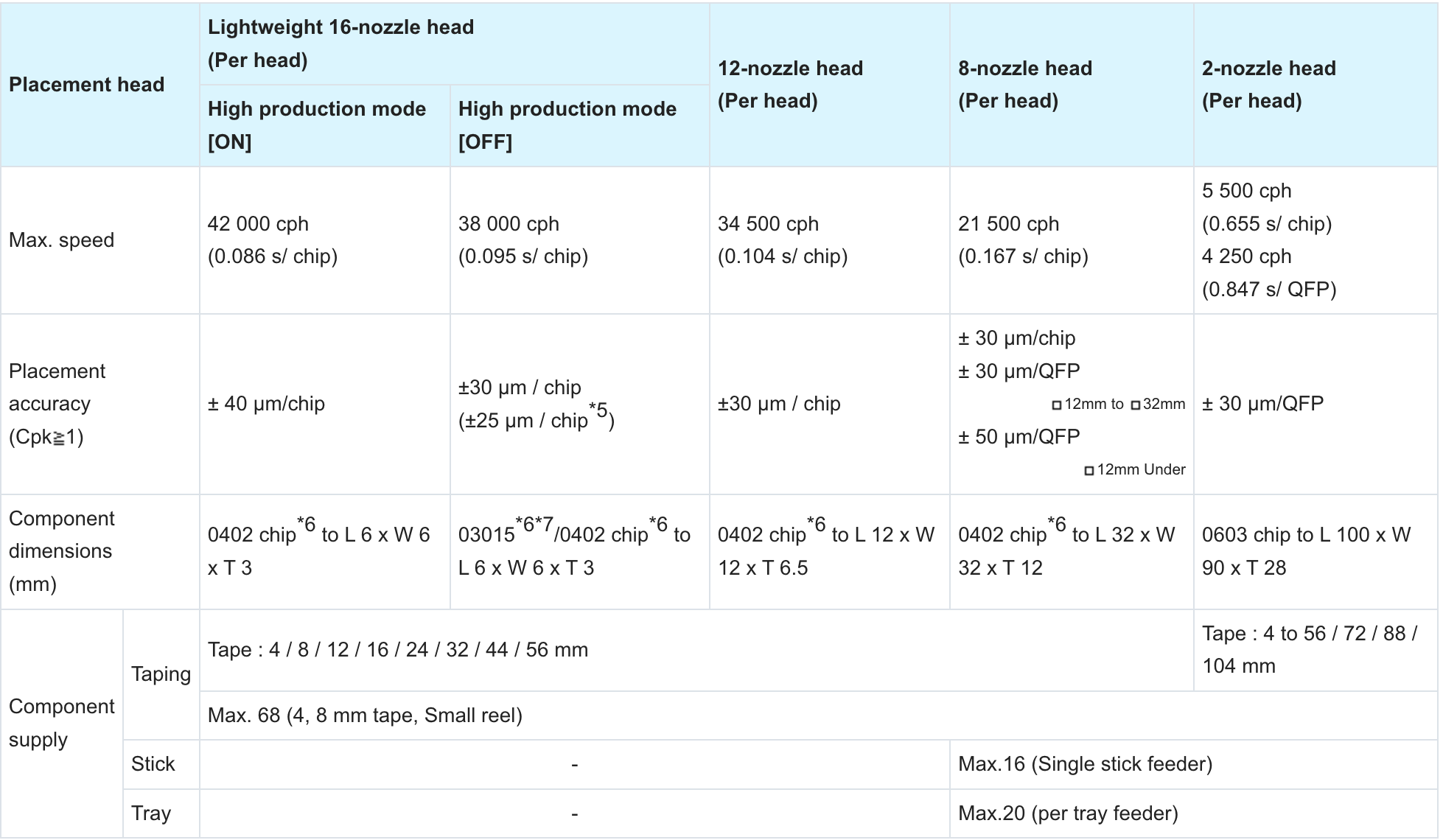

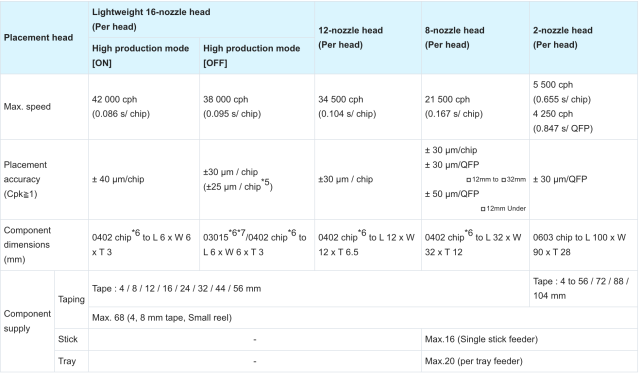

The dual heads are built to place a broad mix of parts, from small chip components through to larger bodies, without a head change between products. Exact minimum and maximum sizes depend on the head and nozzle set you select, so send your part list or a sample board and we will confirm the combination that covers everything you run.
Panasonic feeders and nozzles made for the NPM series are what this machine is set up to run. Send the feeder widths and nozzle part numbers you hold, and we will confirm compatibility and supply anything missing, so the line starts with a complete tool set rather than a shopping list.
Yes. Printing, placement and inspection are meant to run as one flow on this platform, so your existing printer and inspection station can sit inside the same process. Share the makes and models you are running and we will confirm how they connect before the machine is ordered.
Regular cleaning and alignment checks on the heads, nozzles and feeder mechanisms keep placement accurate, with intervals set by the machine documentation. Most plants keep nozzles, feeder parts and a few common valves or boards in stock so a small failure does not stop a shift, and we supply all of those.
Have your line layout, board mix and feeder list ready, and agree the installation and optimization plan with our engineers in advance. We provide installation, production optimization and after-sales support, so the machine is set up to run your actual products rather than simply powered on.
It fits PCB assembly work where placement is the bottleneck — high-volume runs first, with mixed and shorter orders handled on the same platform. Electronics manufacturers use it on boards that combine many component types, and the same setup works for precision assembly outside consumer products.
