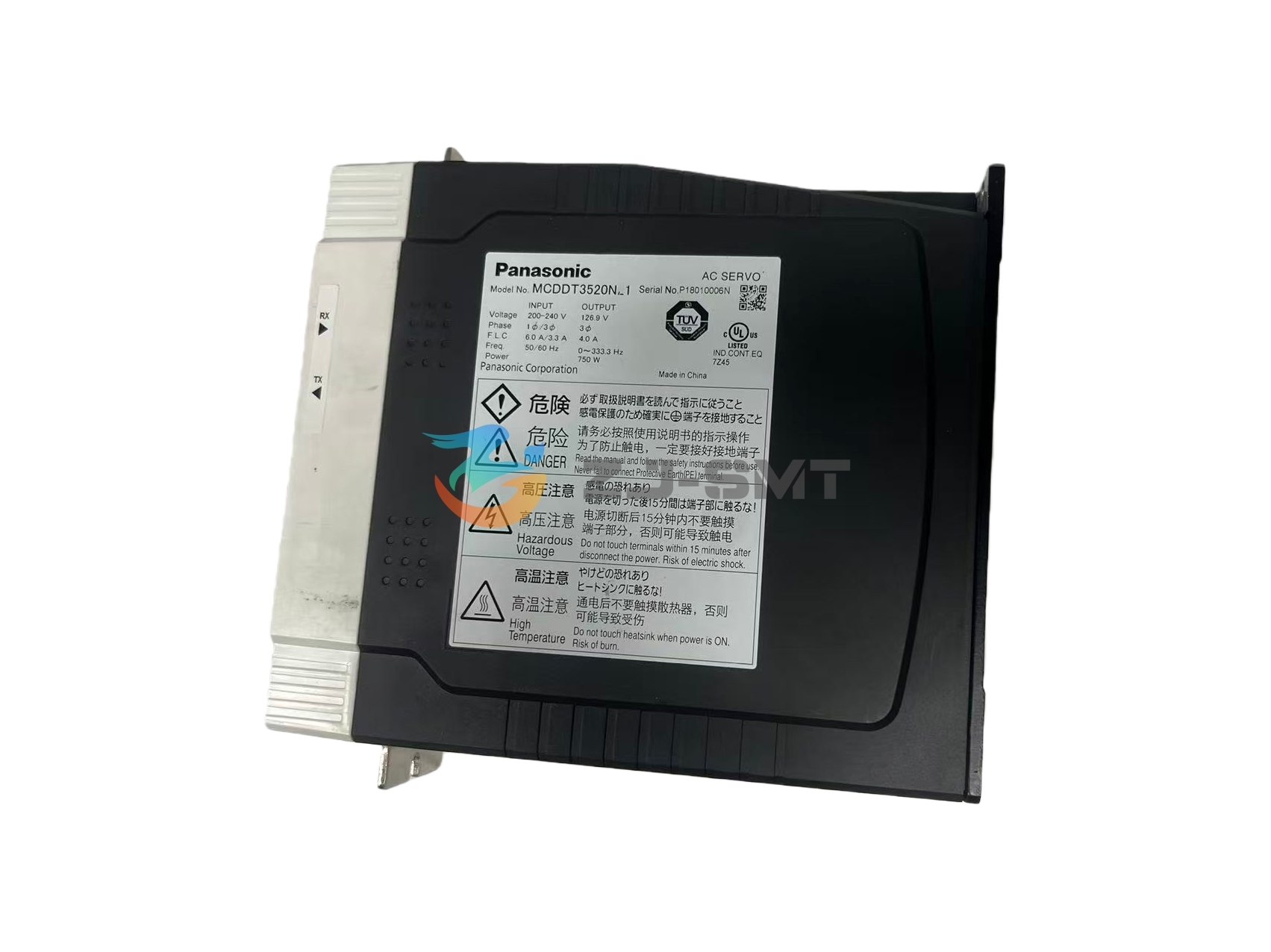

Panasonic AC Servo Model MCDDT3520N

Product Overview

Panasonic built this AC servo unit for the AV131, RL131 and RG131 insertion machines, and it is the part a maintenance team needs when an inserter stops mid-batch and the fault traces back to the servo. It is supplied as a spare for the position the original unit occupied on those three platforms, not as a universal servo that will suit any Panasonic machine. Orders come mainly from plants that still run these inserters in daily production. We supply the unit from a range that covers the major pick and place machine manufacturers — Panasonic, Yamaha, Fuji, Juki and Samsung — so it is usually ordered with other spares rather than on its own.

Applications Across Insertion Lines

• AV131 inserters — a servo fault stops the machine partway through its cycle, and boards waiting behind it begin to stack up on the conveyor.
• RL131 lines — plants running these machines around the clock treat the servo as a stock item, because a replacement ordered after the failure arrives later than the stoppage can afford.
• RG131 machines — where insertion runs alongside newer equipment, this stage still has to hit its cycle time, so a failed servo is not something that can be left until later.
• Mixed equipment floors — inserters rarely run alone, and the same plant usually carries pick and place machine manufacturers' placement platforms, so the servo is bought as one item on a longer spares list.
• Lines fed from SMT — boards arrive from the SMT stage already carrying their surface-mount parts, and insertion adds the through-hole components, so a servo fault holds up work that is nearly finished.
• Repair and service companies — a technician buying for an on-site job wants the correct unit first time, with a photograph of the label so fit can be checked before the visit.

Machine Compatibility

This servo is supplied for three Panasonic insertion platforms: the AV131, the RL131 and the RG131. One unit covers all three, which simplifies matters for a plant running a mix of inserters, because a single spare can go to whichever machine needs it first. Panasonic builds different servo units for its insertion machines and for its placement equipment, and the SMT pick and place machine manufacturers each use their own motion parts — so a servo that fits one machine will not necessarily fit another. Confirm both the machine model and the number on the unit you are replacing before you order. If your machine is a different Panasonic model, tell us which one and we will confirm what we can supply.

Installation & Commissioning

1. Power the machine down and isolate it using your own lockout procedure before you touch the servo.
2. Photograph the unit in position and label every cable as you disconnect it — those photos save time when the replacement goes back in.
3. Remove the failed servo following the machine manual for your AV131, RL131 or RG131, and set it aside with its cables labelled.
4. Fit the replacement in the same position, reconnect in the reverse order of removal, and check that every cable is seated.
5. Power up and run the machine's reference or home routine, then jog the axis slowly rather than going straight to production speed.
6. Run a short test batch and check the insertion results across several boards before you hand the machine back to the line.

Spare Stock Planning

• Keep one on the shelf — for a plant running these inserters every day, a spare on site turns an unplanned stop into a short maintenance window instead of a wait on shipping.
• Replace on your own schedule — if a unit has already been repaired once, plan the swap during a changeover or a scheduled stop rather than running it until it fails in the middle of a production run.
• Keep the failed unit until the replacement runs — comparing the two side by side is the quickest way to spot a difference in the label or connectors, and it leaves you a core if you decide to rebuild later.
• One enquiry, more of the line — our shelves also carry feeders, valves, motors and boards for the SMT pick and place machine manufacturers' platforms, so a servo can be ordered together with the other parts a machine is short of.
