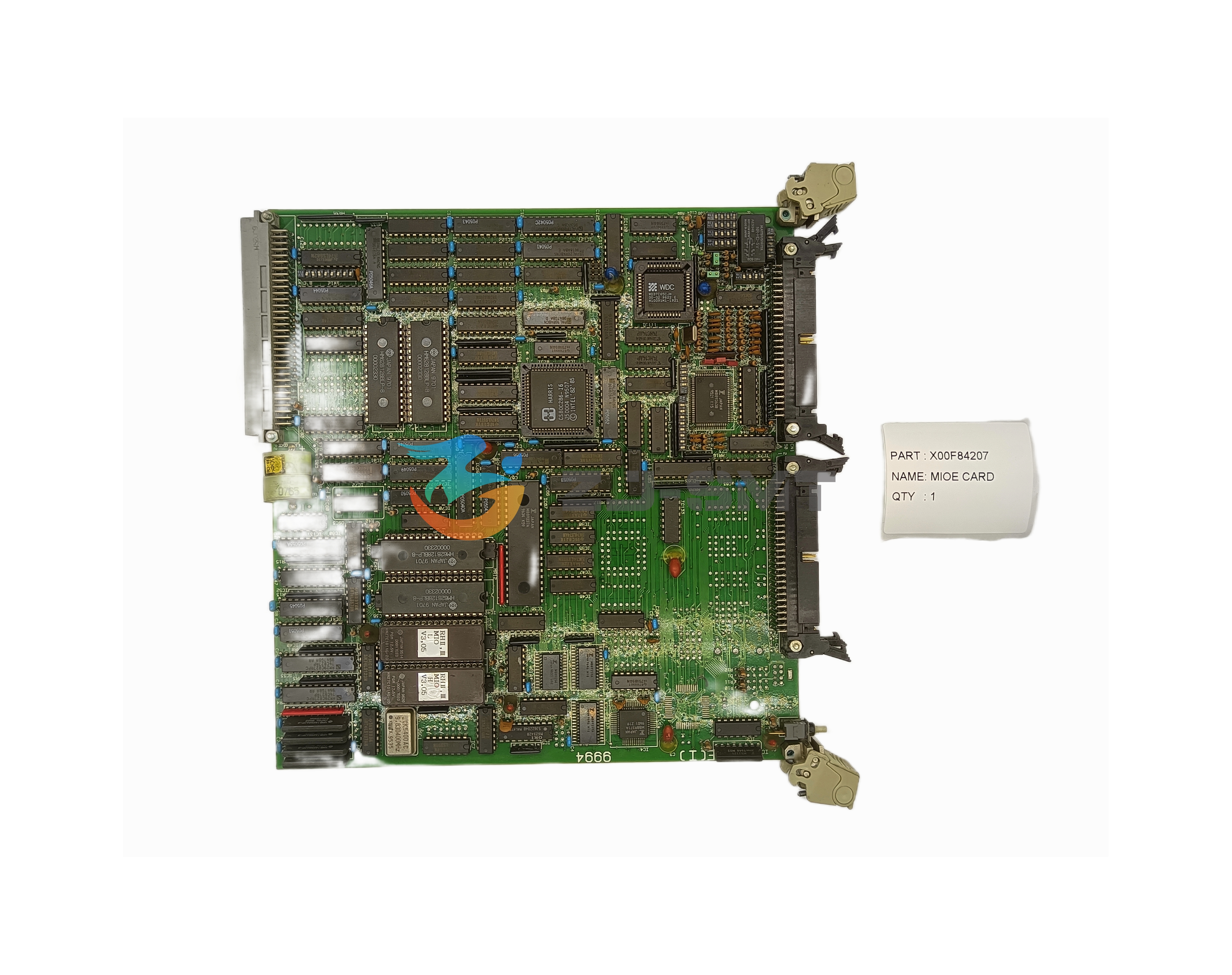

The MIOE card is a replacement control card for Panasonic SMT and AI assembly machines. It is a position-specific board, so a replacement has to match both the machine and the slot the original came from rather than a general description. Our customers include SMT pick and place machine manufacturers, PCB assembly plants and repair workshops, and every order is checked against the machine before it leaves us. Most of the time the card simply works away inside the control set; it becomes a purchasing decision the moment a fault supports it or a plant decides to hold a spare. Fitting the replacement is a straightforward cabinet job for a technician who already knows the machine.
| Attribute | Detail |
| Part number | X00F84207 |
| Board family | Panasonic MIOE |
| Product type | Replacement control card |
| Brand compatibility | Panasonic |
| Equipment category | Motors, drivers and boards |
| Used on | Panasonic SMT and AI assembly equipment |
| Machine fit | Matched to your machine model |
| Card position | Same position as the original board |
| Supply form | One replacement card, supplied for a service fitting |
| Packing | Protective packing for transit; a preferred packing method can be confirmed with us |
| Availability | Checked against stock or booked supply when you send your enquiry |
| Warranty | Terms confirmed with your quotation |
The number on the board is what identifies it. Panasonic prints the part number on the card and repeats it on a label in most cases, and that number plus the machine model is what our team matches a replacement against. Cards inside the same cabinet can look very similar, so an order placed by description alone is the one that most often comes back. Read the number from the card you are removing rather than from an old purchase record, because part numbers are occasionally updated between machine builds. If the printing has worn away, note the machine model and the board position and send those instead.
Fit is decided by machine model and board position, not by the family name printed on the board. A control cabinet holds several Panasonic cards that look similar but do different jobs, and a card pulled from another position will not substitute for this one. The same caution applies across the range: a board that suits one platform does not automatically suit the next. We run this compatibility check every week for SMT pick and place machine manufacturers and for the assembly plants that maintain their own lines, and it is far cheaper to catch a mismatch before dispatch than after.
ZJ-SMT supplies Panasonic SMT and PCB assembly equipment and spare parts to manufacturers worldwide. Our range covers pick-and-place machines, axial and radial insertion equipment, solder paste inspection systems, and feeder spare parts, with both new and used options available. We support bulk orders, and machine condition and availability are confirmed with you before ordering. Whether you are expanding a line, replacing a worn feeder part, or sourcing equipment for a new project, send us your model numbers and our team will come back with a suitable solution and quotation.
It is one of the control cards in the machine's electrical cabinet, carrying signals between the main controller and the sections the machine drives. Because it works as part of a set, a problem with the card often appears as machine behaviour rather than an obvious board failure, which is why maintenance teams confirm the position before ordering a replacement.
No. Panasonic cabinets hold several different cards that look alike but do different jobs, and a card from another position will not substitute for this one. Order by the number printed on the card you are replacing, and treat the card name as a description rather than an identifier.
Yes. It is a straight swap inside the cabinet for a technician who is used to the machine: isolate it, release the connectors, seat the board in the same position, then bring the machine back up through its own start-up sequence. Watch the section the card serves for the first shift before releasing the line to full production.
Check the seating and the connectors first, then look at the section the card serves. A fault that comes straight back on the same position usually sits downstream of the board, in the wiring, the sensor or the motor side, so a short diagnostic pass is worth doing before another card is ordered.
No. It is not a wear item and there is no set replacement interval, so it is not part of a scheduled maintenance kit. It is changed when a fault is traced to the board or when a technician decides the position is suspect. A spare can sit in stores for a long time and still be perfectly usable when it is needed.
Yes. Alongside this card we handle feeders, nozzles, valves, motors, drivers and other boards for Panasonic lines, and we cross-check alternate numbers where labels have worn. If you are rebuilding a board set, send the machine model and the positions you need and we will check each one.
